Firestone W013587325 - Airide Air Spring Double Convoluted 26
- Rating
- ★★★★★ (1 Review)
- Part Number
- W013587325
- Manufacturer
- FIRESTONE
- Description
-
Airide Air Spring Double Convoluted 26
details
$20449
MSRP: $211.40
Save: $6.91
In stock
limited availability at this price!
FIRESTONE part description

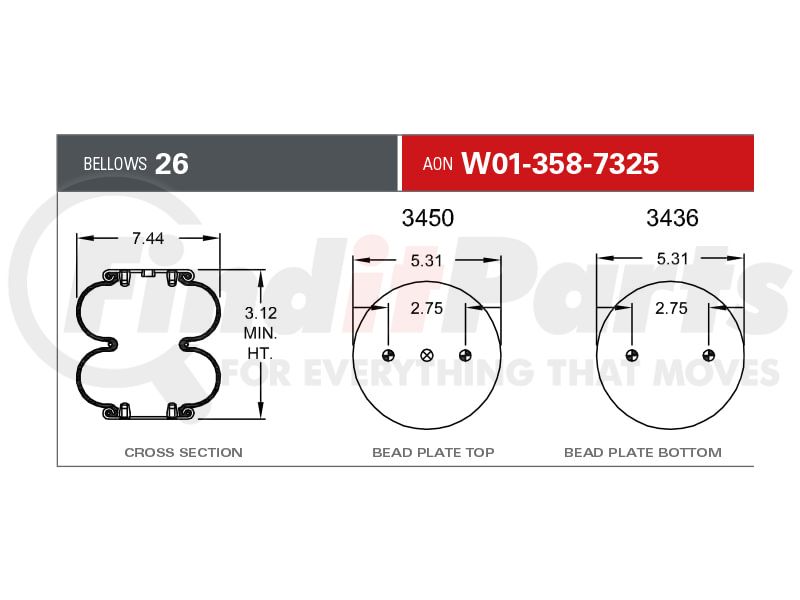

Order Number: | W01-358-7325 |
Bellows #: | 26 |
Assembly Weight: | 5.6 lbs |
Design Height: | 7-8 inches |
Minimum Jounce Height: | N/A inches |
Maximum Rebound Height: | N/A inches |
Loading Capacity at 20 psig: | 436 lbsf |
Loading Capacity at 60 psig: | 1,308 lbsf |
Loading Capacity at 90 psig: | 1,962 lbsf |
Natural Frequency: | Hz |
Maximum Diameter: | 8.6 inches |
Material Type: | N/A |
Operating Temperature: | 57Cº to-54Cº |
Remarks: | |
TR: 8442 |
FIRESTONE W013587325 Cross Reference
We have 29 alternatives for the W013587325 by FIRESTONE:
- TORQUE PARTS TR7325
- FS7325
- FIRESTONE 26
- E.R.F. 1398567
- GOODYEAR 2B8150
- GOODYEAR 2B8153
- AMERICAN CARRIER 8003006
- CONTITECH FD12017509
- GOODYEAR 2B8-2152
- BLACKTECH 2C-18 120 P03
- CONTITECH FD 120-17 3/4 M8
- CONTITECH FD12020509
- 579923530
- FIW013587325
- CONTITECH AS7325
- TRIANGLE SUSPENSION AS-4509
- WORLD AMERICAN WA01-7325C
- MERITOR FS7325
- AMERICAN CARRIER 8003-006
- GOODYEAR BELLOWS 579-92-3-530
- GOODYEAR PART 2B8-150
- GOODYEAR PART 2B8-153
- GOODYEAR PART 2B8-550
- HENDRICKSON S-14395
- MACK 227QS-32
- PISTON 3436
- TOP PLATE 3450
- TRIANGLE BELLOWS 6392
- TRIANGLE PART 4509
Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
