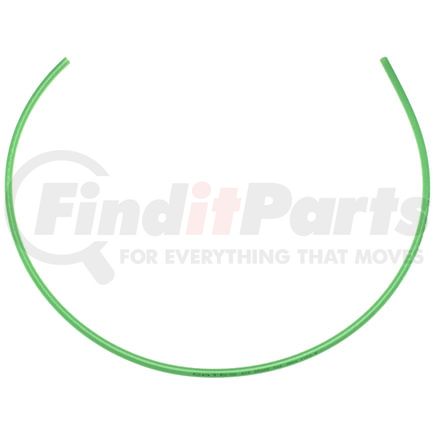

(888) 312-8812 Login SignupGATES H30045-06 Nylon Air Brake Tubing (Nylon Tubing Compression)
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES H30045-06 Part Description
Manufacturer
Product Description
Nylon Air Brake Tubing (Nylon Tubing Compression)
Features & Benefits
- For use with Gates DOT SureLok (G31 Series) or Gates DOT compression (G32 Series) couplings
- Heat- and light-stabilized seamless extruded nylon tube
- Nylon cover available in black (NABTA), blue (NABTB), green (NABTG), red (NABTR), yellow (NABTY) and orange (NABTO) colors. Other colors available upon request
- For straight cuts use Small Nylon Tube Cutter (Part Number 78015) reference in the Professional-Grade Tools Section
- Conforms to SAE J844 specifications. Meets D.O.T. FMVSS 106
- Temperature rating: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
- Type A: Non-reinforced in sizes 1/8 in., 5/32 in., 3/16 in., and 1/4 in. (use for service lines only)
- Type B: Reinforced with one open ply of fibrous nylon in sizes 5/16 in., 3/8 in., 1/2 in., 5/8 in. and 3/4 in.
- NOTE: Sizes 1/8 in. and 5/32 in. are NOT recognized by D.O.T. for air brake systems. These are for service lines only
GATES H30045-06 Specifications
Product Attributes
| Product Type | Nylon Tubing Compression Nylon Air Brake Tubing |
| Industrial Description | 6NABTGXREEL |
| Length | 500 FT |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 150 PS |
| Burst Pressure | 1407 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Outside Diameter | .375 IN |
| Bend Radius | 1.25 IN |
| Tube Description | Heat & Light Stabilized Seamless Extruded Nylon |
| Reinforcement Material | Type B - Reinforced w/ One Open Ply of Fibrous Nylon |
| Cover Material | Nylon |
| Cover Color | Green |
| Coupling Recommendation | Gates DOT Compression, Gates DOT SureLok Couplings |
Additional Information
| Harmonized Tariff Code (Schedule B) | 3917310000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053980929 |
| VMRS Code | 059032033 |
| UNSPSC | 40142000 |
GATES H30045-06 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 1120-6B-GRN-500 |
| Weatherhead | NT10006GN500 |
| NAPA | H30045-06 |
