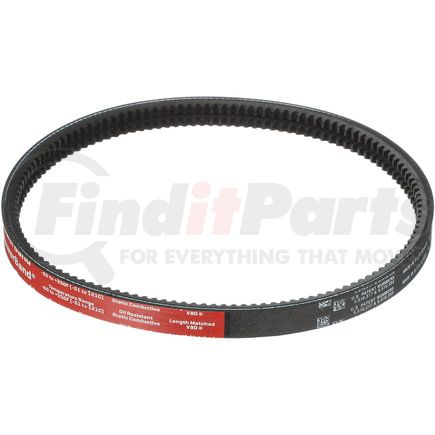

Gates 2/3VX500 - Super HC PowerBand Narrow Section Molded Notch Joined V-Belt
$5599
MSRP: $57.02
Save: $1.03
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Super HC PowerBand Narrow Section Molded Notch Joined V-Belt
Features & Benefits
- Tie Band construction assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
- Highly resistant to tensile and flexing forces, fatigue and shock loads offering high stability and smooth running on the toughest drives
- Strong band controls belt-to-belt distance and prevents sideways bending
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Meets or exceeds RMA standards for static conductivity and heat and oil resistance
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in 3V, 3VX, 5V, 5VX and 8V cross-sections
Product Attributes
| Type | Narrow Section Molded Notch Joined V-Belt |
| Cross Section Designation | 3VX |
| Strand Quantity | 2 |
| Top Width | .75 in |
| 2000 | .38 IN |
| Outside Circumference | 50 in |
| Construction | Notched |
| 9837 | Yes |
| Belt Material | Ethylene Elastomer (EE) |
| Cord Material | Polyester |
| Top Width | 19 mm |
| 2000 | 10 MM |
| Outside Circumference | 1270 mm |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| UPC | 00072053236446 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
Part Interchanges
