GATES part description

Product Description

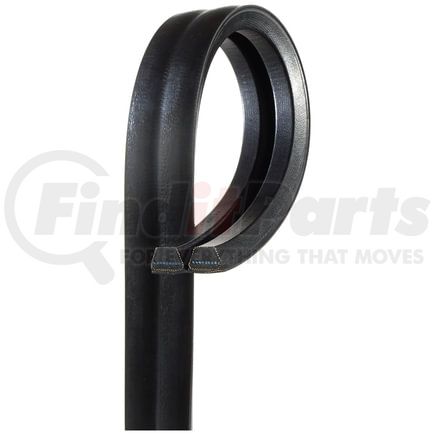

Super HC PowerBand Narrow Section Wrapped Joined V-Belt

Application Summary

1997-1993 Gillig, Phantom, Cummins M11 Diesel, A.C.

Features & Benefits

  • Tie Band construction assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
  • Highly resistant to tensile and flexing forces, fatigue and shock loads offering high stability and smooth running on the toughest drives
  • Strong band controls belt-to-belt distance and prevents sideways bending
  • Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
  • Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
  • Meets or exceeds RMA standards for static conductivity and heat and oil resistance
  • Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
  • NOTE: Available in 3V, 3VX, 5V, 5VX and 8V cross-sections

Product Attributes

Type Narrow Section Wrapped Joined V-Belt
Cross Section Designation 5V
Strand Quantity 2
Top Width 1.38 in
2000 .62 IN
Outside Circumference 95 in
Construction Wrapped
9837 No
Belt Material Neoprene
Cord Material Polyester
Top Width 35 mm
2000 16 MM
Outside Circumference 2413 mm

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 4010391000
UPC 00072053247008
VMRS Code 065005003
UNSPSC 26111801

Part Interchanges

GATES 2/5V950 Cross Reference

We have 1 alternatives for the 2/5V950 by GATES:
