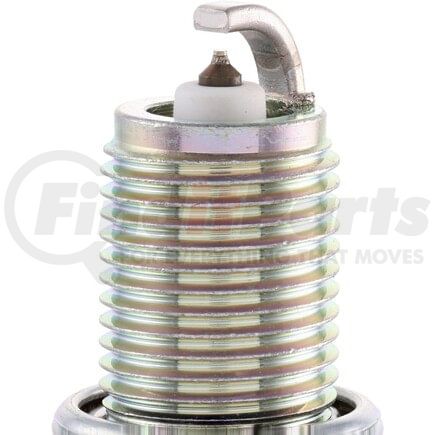

NGK Spark Plugs 93322 - NGK Laser Platinum Spark Plug
- Part Number
- 93322
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Laser Platinum Spark Plug
details
$2049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
NGK SPARK PLUGS part description
Product Description
NGK Laser Platinum Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire platinum alloy center electrode provides consistent performance
- PLATINUM ALLOY CENTER ELECTRODE: Longer wearing and higher temperature resistance compared to traditional nickel spark plugs
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire platinum alloy plugs
Product Attributes
| Stock Number | 93322 |
| Part Number | PFR7AB |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8 IN |
| Insulator Height | 50.50 MM |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 14.00 MM |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.99 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| 6648 | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| 9459 | No |
| 9506 | 0.14 IN |
| 9608 | Fine Wire |
| 9745 | Crush |
| 9746 | Yes |
| 9805 | Mid Projection |
| Short Style Spark Plug | No |
| Service Number | PFR7AB |
| Washer Included | Yes |
| Grade Type | Performance |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295933220 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- Ski-Doo Summit SP E-TEC 800R 174 (2017)
- Ski-Doo Summit X E-TEC 800R 174 (2017)
- Ski-Doo Expedition Xtreme E-TEC 800R (2016-2019)
- Ski-Doo Summit Burton E-TEC 800R (2016-2017)
- Ski-Doo Summit SP T3 Package E-TEC 800R 174 (2016)
- Ski-Doo Summit SP T3 Package E-TEC 800R 163 (2016)
- Ski-Doo Summit SP T3 Package E-TEC 800R 154 (2016)
- Ski-Doo Summit X T3 Package E-TEC 800R 154 (2016)
- Ski-Doo MX Z Blizzard E-TEC 800R (2016-2017)
- Ski-Doo Renegade Enduro E-TEC 800R (2016-2018)
- Ski-Doo Summit X T3 Package E-TEC 800R 174 (2015-2016)
- Ski-Doo Renegade X-RS E-TEC 800R (2015-2017)
- Ski-Doo Summit X T3 Package E-TEC 800R 163 (2015-2016)
- Ski-Doo Summit Freeride E-TEC 800R (2011)
- Ski-Doo Summit SP E-TEC 800R 163 (2012-2016)
- Ski-Doo Summit SP E-TEC 800R 154 (2012-2017)
- Ski-Doo Summit SP E-TEC 800R 146 (2012-2017)
- Ski-Doo Renegade X E-TEC 800R (2011-2016)
- Ski-Doo Renegade Backcountry X E-TEC 800R (2011-2017)
- Ski-Doo Renegade Backcountry E-TEC 800R (2011-2017)
- Ski-Doo Renegade Adrenaline E-TEC 800R (2011-2016)
- Ski-Doo MX Z X-RS E-TEC 800R (2011-2017)
- Ski-Doo MX Z X E-TEC 800R (2011-2016)
- Ski-Doo MX Z TNT E-TEC 800R (2011-2016)
- Ski-Doo GSX SE E-TEC 800R (2012-2015)
- Ski-Doo Freeride E-TEC 800R 154 (2012-2017)
- Ski-Doo Freeride E-TEC 800R 146 (2012-2017)
- Ski-Doo Freeride E-TEC 800R 137 (2012-2017)
- Ski-Doo Summit X E-TEC 800R 163 (2011-2015)
- Ski-Doo Summit X E-TEC 800R 154 (2011-2015)
- Ski-Doo Summit X E-TEC 800R 146 (2011-2015)
- Ski-Doo Summit Everest E-TEC 800R (2011)
