MONROE part description

Product Description

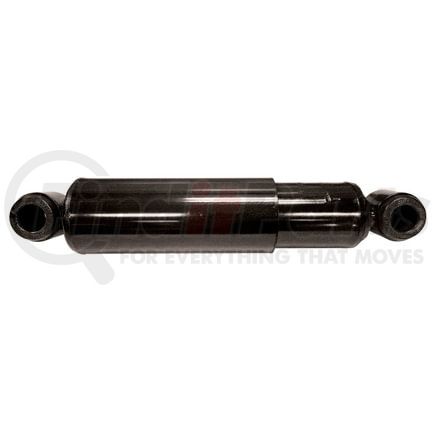

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING TRANSIT BUSES -- Designed to handle the demands of high mileage and severe use transit buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/4-in. reserve tube holds more fluid to improve performance (when required)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore allows valve finetuning by allowing more hydraulic fluid to dissipate heat for better control
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

9791 L4
9789 L4
Dust Shield Included Yes
9783 No
9908 No
9792 Yes
Part Description Shock Absorber
Internal Construction Type Twin Tube
9786 3.15 IN
Adjustable Damping No
Color Black
Finish Painted
Shock Absorber Bore Size 1-3/4 IN
Shaft Diameter 18 MM
Body Diameter 2.75 IN
Compressed Length 16.75 IN
Dust Shield Material Metal
Extended Length 26.406 in
Gas Charged No
Lower Mount Type Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Parts Pack(s) None
Shock Absorber Body End Measuring Point Center of Loop
Shock Absorber Rod End Measuring Point Center of Loop
Travel Length 9.656 in
Upper Mount Type Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Compressed Length 425.5 MM
Extended Length 670.7 MM
Travel Length 245.3 MM
Body Diameter 69.9 MM
9786 80 MM
9801 44.5 MM
9801 1.75 IN
Adjustable Damping No

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598034885
VMRS Code 016008003
UNSPSC 25172011
