(888) 312-8812 Login SignupGATES 3/B81 Hi-Power II PowerBand Classical Section Wrapped Joined V-Belt
$12799
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Jan 16
GATES 3/B81 Part Description
Manufacturer
Product Description

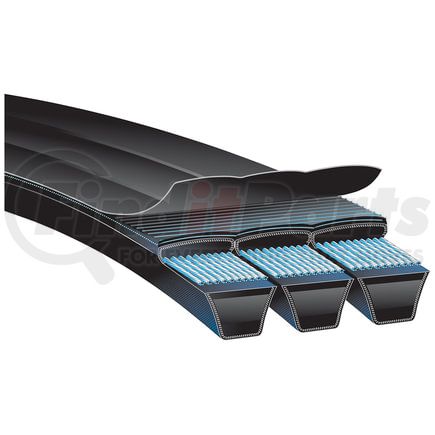

Hi-Power II PowerBand Classical Section Wrapped Joined V-Belt
Application Summary
Minneapolis-Moline, 7600SP, Chrysler V-8 318 Diesel, Propulsion
Features & Benefits
- Smoother running with less slip and wear for excellent belt service life and reduced pulley wear
- High-quality rubber compound protects the belt against heat, ozone and sunlight
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords strongly adhere to the body of the belt, resulting in equal load distribution and absorption of bending stress, fatigue and shock loads without cord deterioration
- Meets RMA oil and heat resistant standards and static conductivity requirements
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in A, B, C, D and E cross-sections
GATES 3/B81 Specifications
Product Attributes
| Type | Classical Section Wrapped Joined V-Belt |
| Cross Section Designation | B |
| Strand Quantity | 3 |
| Top Width | 2.25 in |
| Top Width Per Strand | .66 IN |
| Outside Circumference | 84 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 57 mm |
| Top Width Per Strand | 17 MM |
| Outside Circumference | 2134 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010343000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053259193 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 3/B81 Part Interchanges
| Brand | Part Number |
|---|---|
| White | 9811830, W9811830 |
| Dayco | RB81-3 |
| CARQUEST | 3/B81 |
| NAPA Belts/Hose | 3/B81 |
| NAPA | 3/B81 |
| PIX | A-W9811830 |
| Industrial Belts | 3/B81 |
GATES 3/B81 Cross References
We have 2 alternatives for the 3/B81 by GATES:
