GATES 23077 Part Description
Manufacturer
Product Description

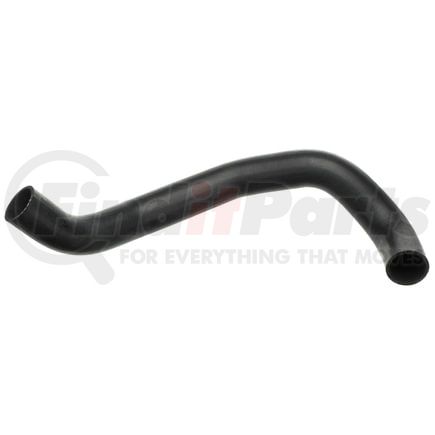

Premium Molded Coolant Hose
Application Summary
2010-04 Ford, Super Duty Van, V-8 6.0 L Diesel, Upper
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 23077 Specifications
Product Attributes
| Centerline Length | 26.4 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.75 in |
| End 2 Inside Diameter | 1.75 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 671 MM |
| End 1 Inside Diameter | 44 MM |
| End 2 Inside Diameter | 44 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00770075147626 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 23077 Part Interchanges
| Brand | Part Number |
|---|---|
| Motorcraft | KM4732 |
| ACDelco | 26523X |
| Dayco | 72685, E72685 |
| Carquest | 23077 |
| Ford | 4C2Z 8260 EA |
| Goodyear | 62756 |
| NAPA Belts/Hose | 9742 |
| Continental Belt | 62756 |
| Duralast | E72685 |
GATES 23077 Fits Vehicles
- Starcraft Bus Starlite (2004-2010)
- Ford E-450 Super Duty (2004-2010)
- Ford E-350 Club Wagon (2004-2005)
- Ford E-350 Super Duty (2004-2010)
GATES 23077 Cross References
We have 1 alternatives for the 23077 by GATES:
