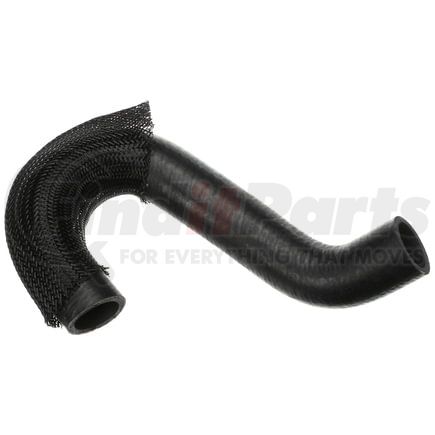

Gates 23119 - Premium Molded Coolant Hose
$4799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Premium Molded Coolant Hose
Application Summary
2009-06 Chevrolet, Impala, V-8 5.3 L, Upper
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
Product Attributes
| Centerline Length | 15.4 IN |
| 9940 | No |
| Branch Quantity | 0 |
| 9845 | 0 |
| End 1 Inside Diameter | 1.27 in |
| End 2 Inside Diameter | 1.27 in |
| Contains Spring | No |
| Material | EPDM |
| 9839 | Yes |
| Centerline Length | 391 MM |
| End 1 Inside Diameter | 32 MM |
| End 2 Inside Diameter | 32 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00770075301486 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
Part Interchanges
- ACDelco 20458S
- Dayco 72366
- Dayco C72366
- Carquest 23119
- General Motors 15286588
- General Motors 89018721
- General Motors 15298838
- General Motors 15298839
- General Motors 52413958
- Goodyear 62529
- Goodyear 62582
- NAPA Belts/Hose 9780
- Continental Belt 62529
- Duralast C72366
- Continental Belt 62582
- Continental Belt B92430
GATES 23119 Cross Reference
We have 2 alternatives for the 23119 by GATES:
Fits Vehicles
- Buick Allure (2008-2009)
- Buick LaCrosse (2008-2009)
- Chevrolet Impala (2006-2009)
- Chevrolet Monte Carlo (2006-2007)
- Pontiac Grand Prix (2005-2008)
