GATES part description

Product Description

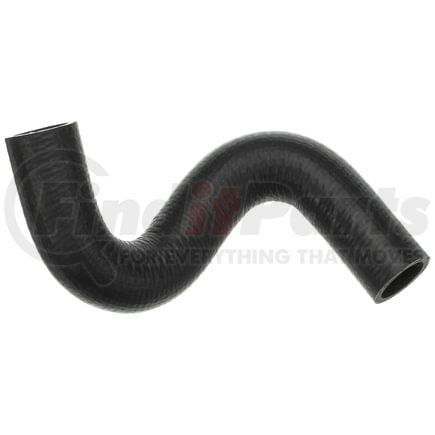

Premium Molded Coolant Hose

Application Summary

2018-07 Toyota, Yaris, 4-Cyl. 1.5 L, Upper - Rad. To Filler Neck

Features & Benefits

  • Specifically-engineered materials resist collapse under vacuum
  • Specifically-engineered materials resist collapse under vacuum
  • Engineered to resist electrochemical degradation, the leading cause of hose failure
  • Pre-shaped to fit and to ensure perfectly sealed conditions
  • EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
  • Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 12.5 IN
9940 No
Branch Quantity 0
9845 0
End 1 Inside Diameter 1.19 in
End 2 Inside Diameter 1.19 in
Contains Spring No
Material EPDM
9839 Yes
Centerline Length 318 MM
End 1 Inside Diameter 30 MM
End 2 Inside Diameter 30 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4009310000
UPC 00770075308027
VMRS Code 042004014
UNSPSC 40142000

Part Interchanges

GATES 23145 Cross Reference

We have 1 alternatives for the 23145 by GATES:

Fits Vehicles

  • Toyota Yaris R (2016)
  • Toyota Avanza (2007-2008, 2010-2012)
  • Toyota Yaris (2006-2018)
