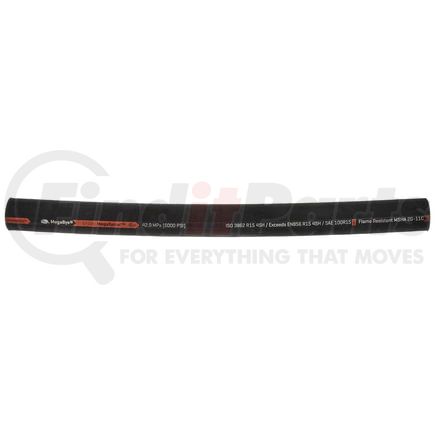

Gates 70866 - EFG6K Spiral Wire Hose - SAE 100R15
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description
EFG6K Spiral Wire Hose - SAE 100R15
Features & Benefits
- Temperature Range: -40 Deg F to +250 Deg F (-40 Deg C to +121 Deg C)
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Recommended Couplings: GlobalSpiral Couplings, GlobalSpiral MAX Pressure Couplings, Stainless Steel S Couplings (-6 through -20)
Product Attributes
| Product Type | EFG6K Spiral Wire Hose - SAE 100R15 |
| Industrial Description | 6EFG6KXCTN |
| Type | Hydraulic Hose |
| Hose Pressure Description | Extremely High Pressure |
| Maximum Working Pressure | 6000 PS |
| Burst Pressure | 24000 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Length | 100 FT |
| 9941 | 6 |
| Inside Diameter | .375 IN |
| Outside Diameter | .80 IN |
| 9879 | 2.5 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Four Alternating Layers of Spiraled, High-Tensile Steel |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Cover Color | Black |
| 9856 | GlobalSpiral, Stainless Steel S |
| 9453 | 100R15 |
| 9954 | 856 4SP |
| 9953 | 3862 Type R15 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| UPC | 00072053882162 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
