STRONG ARM LIFT SUPPORTS part description

Product Description

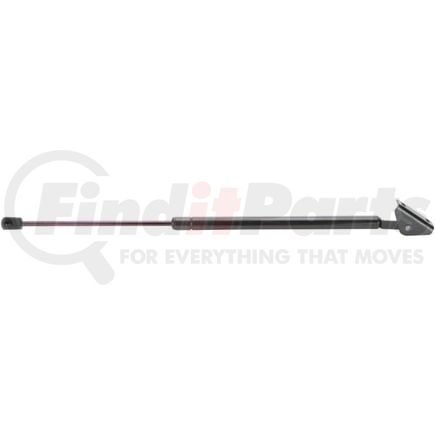

Tailgate Lift Support

Features & Benefits

  • Exact fit original equipment design guarantees correct fit and function
  • Engineered and built to meet or exceed original equipment quality standards
  • Individually tested for performance and reliability
  • Hardened, nitride plated steel shaft provides optimal durability
  • Rubber O-ring piston seal prevents leakage for a controlled lift and consistent performance
  • Heavy gauge steel body is electrostatically painted and heat cured to OE specs
  • Self-Cleaning Piston Assembly provides smooth operation and more reliable performance
  • Upper bushing is manufactured with quality precision providing exact fit and promotes longer operating life
  • No special installation tools required

Product Attributes

Compressed Length 13.7 IN
End 1 Type Ball Socket
End 2 Type Off-Set Blade w/Bracket
Maximum Force 90 LB
Cylinder Outside Diameter 19 MM
Universal Or Specific Fit Specific
Extended Length 21.2 in
End 1 Material Nylon
Stroke Length 7.5 IN
Inner Shaft Diameter 8 MM
Outer Cylinder Color Black
Outer Cylinder Material Steel
6225 10 MM
Internal Rebound Spring No

Additional Information

Country of Origin (Primary) TR
Harmonized Tariff Code (HTS) 8302303010
Warranty Time 12
Warranty Time UOM MO
UPC 00043645664541

Part Interchanges
