STRONG ARM LIFT SUPPORTS part description

Product Description

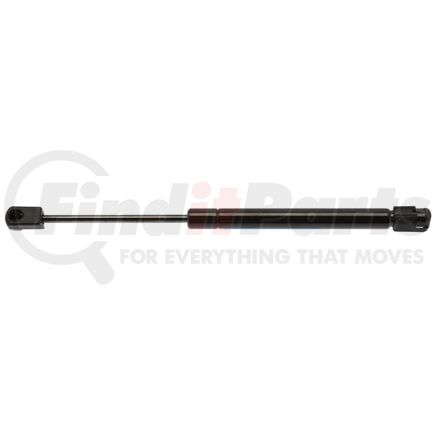

Trunk Lid Lift Support

Features & Benefits

  • Exact fit original equipment design guarantees correct fit and function
  • Engineered and built to meet or exceed original equipment quality standards
  • Individually tested for performance and reliability
  • Hardened, nitride plated steel shaft provides optimal durability
  • Rubber O-ring piston seal prevents leakage for a controlled lift and consistent performance
  • Heavy gauge steel body is electrostatically painted and heat cured to OE specs
  • Self-Cleaning Piston Assembly provides smooth operation and more reliable performance
  • Upper bushing is manufactured with quality precision providing exact fit and promotes longer operating life
  • No special installation tools required

Product Attributes

Compressed Length 7.46 IN
End 1 Type Ball Socket
End 2 Type Ball Socket
Maximum Force 102 LB
Cylinder Outside Diameter 15 MM
Universal Or Specific Fit Specific
Extended Length 11.19 in
End 1 Material Nylon
End 2 Material Nylon
Stroke Length 3.73 IN
Inner Shaft Diameter 6 MM
Outer Cylinder Color Black
Outer Cylinder Material Steel
6225 8 MM
6226 8 MM
Internal Rebound Spring No

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8302303010
Warranty Time 12
Warranty Time UOM MO
UPC 00845998000751

Part Interchanges

Fits Vehicles

  • Chrysler Sebring (2001-2005)
