DELPHI part description

Product Description

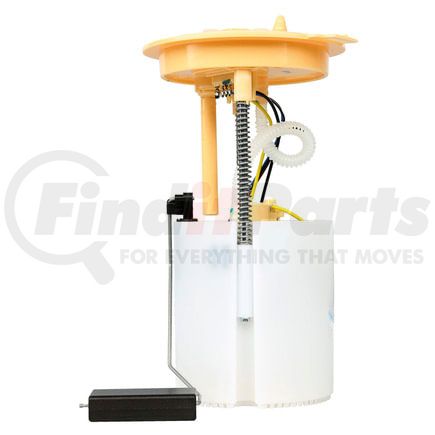

Fuel Pump Module Assembly

Product Attributes

Fuel Level Sender Assembly Included Yes
Package Contents Fuel Pump Module Assembly w/Float Arm, Instruction Sheet
Item Grade Standard Replacement
System Pressure 44 psi
Vapor Pressure Sensor No
Outlet Outside Diameter 0.313 IN
Voltage 12 2H
Fuel Type Gas
Regulator Included No
Maximum Pressure 94 PS
Terminal Type Blade
Gasket Or Seal Included No
Terminal Quantity 5
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 2
In Tank or External In Tank
Resistance Ohms Empty 50 82
Resistance Ohms Full 300 82
Internal Or External Strainer Internal
Pump Type Electric
Average Current Draw 7 68
Average Flow Rating 20 GPH
Fuel Sending Unit Included Yes
Negative Ground No
Mounting Hardware Included No
Grade Type Premium
Connector Quantity 1
Connector Shape Oval
Housing Material Plastic
Installation Warnings No
Connector Gender Female
Fuel Filter Included No
Minimum Pressure 44 PS
Wire Harness Included No
Pump Design Turbine
Fuel Tank Pressure Sensor Included No

Additional Information

Harmonized Tariff Code (Schedule B) 8413309000
Harmonized Tariff Code (HTS) 8413309030
Warranty Special Limited Lifetime
Warranty Special UOM LF
Country of Origin (Primary) TH
UPC 00689604231609
VMRS Code 044003258
UNSPSC 25172409

Part Interchanges

DELPHI FG1186 Cross Reference

We have 1 alternatives for the FG1186 by DELPHI:

Fits Vehicles

  • Volkswagen Beetle (2013-2015)
  • Volkswagen Golf (2010-2014)
  • Audi A3 (2010-2013)
  • Volkswagen Jetta (2005-2006, 2009-2015)
