DELPHI part description

Product Description

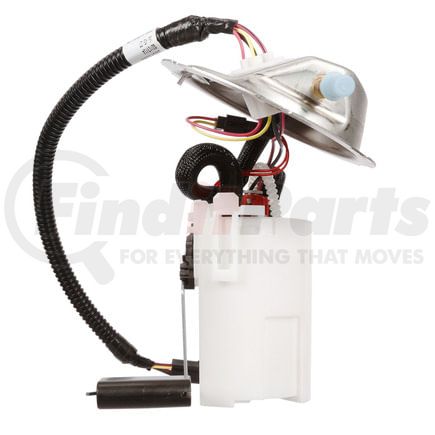

Fuel Pump Module Assembly

Product Attributes

Fuel Level Sender Assembly Included Yes
Item Grade Standard Replacement
System Pressure 60 psi
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Vapor Pressure Sensor No
Outlet Outside Diameter 0.375 IN
Voltage 13 2H
Fuel Type Gas
Regulator Included Yes
Maximum Pressure 78 PS
Terminal Type Pin
Gasket Or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 1
In Tank or External In Tank
Resistance Ohms Empty 15 82
Resistance Ohms Full 160 82
Internal Or External Strainer Internal
Pump Type Electric
Average Current Draw 10 68
Average Flow Rating 14 GPH
Fuel Sending Unit Included Yes
Negative Ground No
Mounting Hardware Included No
Grade Type Premium
Connector Quantity 1
Connector Shape Round
Housing Material Plastic
Installation Warnings No
Connector Gender Female
Fuel Filter Included No
Gasket Or Seal Material Nitrile Rubber
Minimum Pressure 60 PS
Wire Harness Included No
Pump Design Turbine
Fuel Tank Pressure Sensor Included No

Additional Information

Harmonized Tariff Code (HTS) 8413309030
Warranty Special Limited Lifetime
Warranty Special UOM LF
Harmonized Tariff Code (Schedule B) 8413309000
Country of Origin (Primary) MX
UPC 00689604222119
VMRS Code 044003258
UNSPSC 25172409

Part Interchanges

Fits Vehicles

  • Ford Focus (2005-2007)
