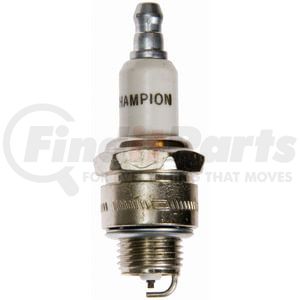

Champion 5322 - EZ Start - Single Card
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CHAMPION part description
Product Description
EZ Start - Single Card
Application Summary
Small Engine
Features & Benefits
- Utilizes EZ Start™ technology
- EZ Start booster gap delivers max voltage at gap where its needed most
- Patented rib core nose design optimizes spark energy and runs cleaner
- Fine wire center and ground electrodes concentrate spark energy for easier starting
Product Attributes
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | 0.03 IN |
| Pre-Gap Size | 0.75 MM |
| Ground Electrode Quantity | 1 |
| Hex Size | 0.813 IN |
| Hex Size | 20.650 MM |
| Manufacturer Heat Range | 11 |
| Seat Type | Flat |
| Reach | 0.75 IN |
| Thread Diameter | 0.551 IN |
| Thread Diameter | 14.000 MM |
| Resistor Type | No |
| Classification | Champion EZ Start |
| Plug Type | 5322 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00037551010950 |
Part Interchanges
CHAMPION 5322 Cross Reference
We have 5 alternatives for the 5322 by CHAMPION:
