BECK ARNLEY part description

Product Description

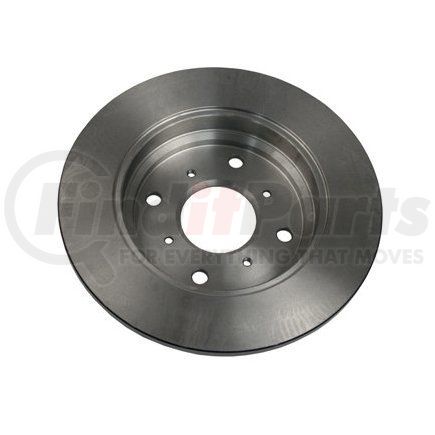

PREMIUM BRAKE DISC

Features & Benefits

  • Matches OE form, fit and function
  • Directional finish optimizes break-in and pad seating
  • High carbon content maximizes thermal conductivity
  • High temp coating on exposed surfaces improves appearance
  • Application specific for this vehicle

Product Attributes

1712 12.5
Height 43.5
Minimum Thickness 8
Rotor Inside Diameter 159
Rotor Thickness 10
Rotor Type Y
Vented N
Rotor Outside Diameter 260
Rotor Center Bore Inside Diameter 64
Lug Quantity 4
Hub Outside Diameter 167.5
Bolt Hole Center To Center Length 114
Are You Using The Long Form Warning Y
Are You Using The Short Form Warning (y/n) N
ORDER MULTIPLES 1
Subject To Prop 65 (yes/no) Yes
Lug Hole Diameter 12.5 MM
Height 43.5 MM
Minimum Thickness 8 MM
4343 159 MM
4344 10 MM
54 260 MM
5734 64 MM
7971 167.5 MM
8433 114 MM

Additional Information

Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (Schedule B) 8708305030
UPC 00049797131573

Fits Vehicles

  • Honda Prelude (1992-1996)
  • Acura Legend (1986-1988)
