(888) 312-8812 Login SignupCENTRIC 120.65145 Centric Premium Brake Rotor
Tap to view 4 more
MSRP: $105.44
$5949
Save $45.95
Limited availability at this price!
In Stock
Get it by Monday, Jan 5
CENTRIC 120.65145 Part Description
Manufacturer
Product Description

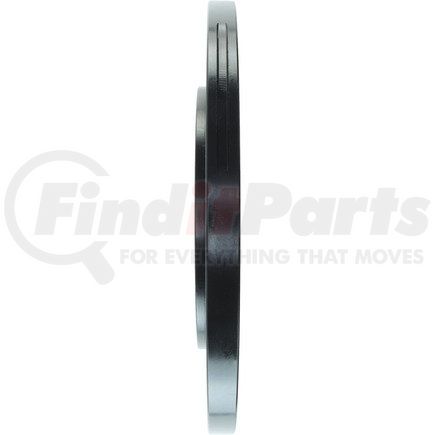

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.65145 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 16.300 |
| Weight [cntrc] Kgs | 7.380 |
| Disc Mounting [cntrc] | Behind the Hub |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.591 IN |
| Discard Thickness | 15.000 MM |
| Nominal Thickness | 18.000 MM |
| Mounting Bolt Hole Diameter | 12.000 MM |
| Mounting Bolt Hole Circle Diameter | 150.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.906 IN |
| Center Hole Diameter | 119.200 MM |
| Center Hole Diameter | 4.693 IN |
| Bearings Included | No |
| Bolt Thread Pitch | 1.750 MM |
| Solid Or Vented Type Rotor | Solid |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Mounting Bolt Hole Quantity | 5 |
| Outside Diameter | 12.126 IN |
| Outside Diameter | 308.000 MM |
| Overall Height | 25.700 MM |
| Overall Height | 1.012 IN |
| Hat Finish | Coated |
| Nominal Thickness | 0.709 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890459996 |
CENTRIC 120.65145 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 681939, 681939FZN, 681939R |
| Neotek Premium Drums and Rotors | 1071146GF |
| N/A | E125-70-150, 75034GT, CK412A315AD, 1407-527279, 42310, BRRF239, 42310G, CK4Z2C026C, CK4Z2C026E, 75034, 850360, 90054228, E12570150 |
CENTRIC 120.65145 Fits Vehicles
- Ford Transit-350 HD (2019)
- Ford Transit-350 (2015-2023)
- Ford Transit-250 (2015-2023)
- Ford Transit-150 (2015-2023)
