CENTRIC 120.63086 Part Description
Manufacturer
Product Description

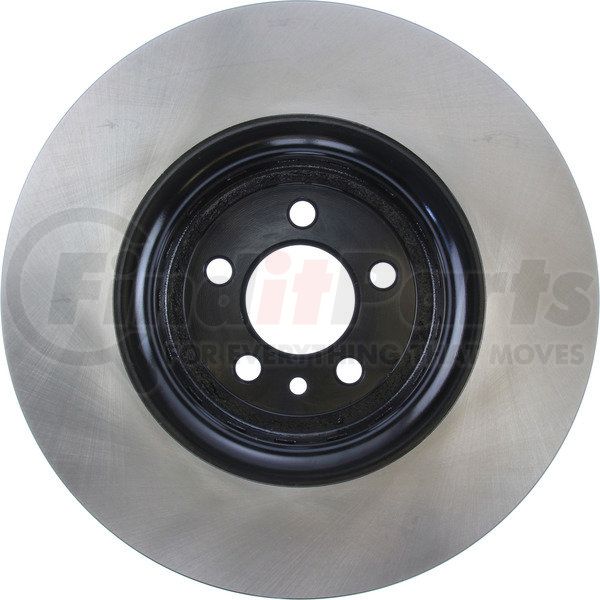

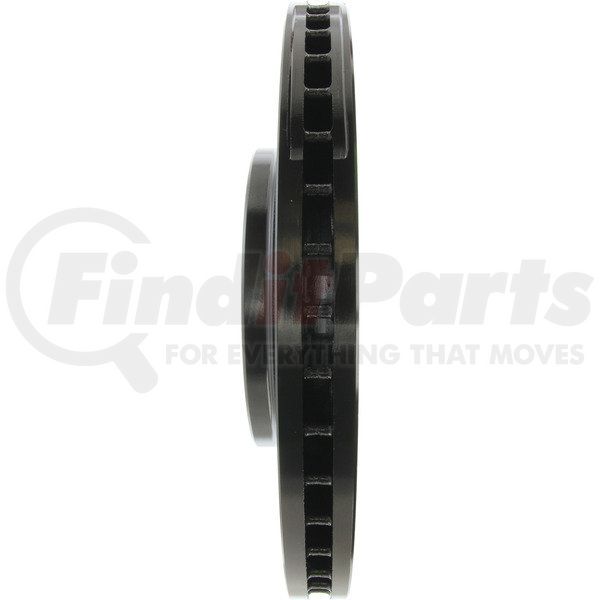

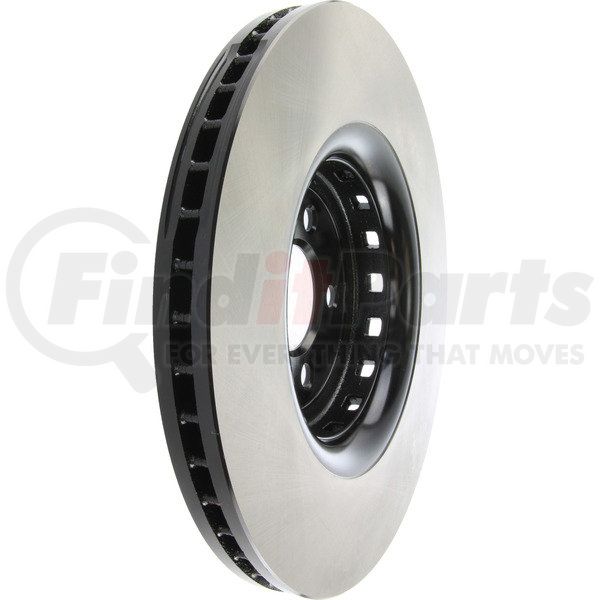

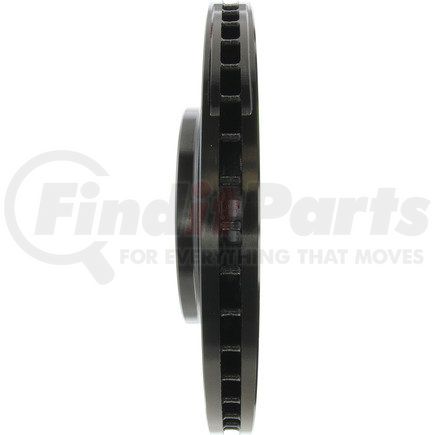

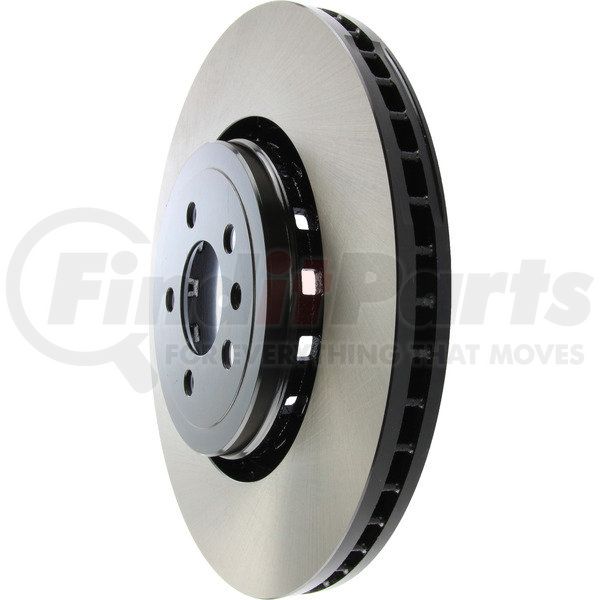

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.63086 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Hat Id [cntrc] In | 7.128 |
| Weight [cntrc] Lbs | 33.050 |
| Vane Style [cntrc] | Straight |
| Notes [cntrc] | Vented Hat |
| Hat Id [cntrc] Mm | 181.050 |
| Weight [cntrc] Kgs | 15.000 |
| OEM Vane Count [cntrc] | 47 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 30.500 MM |
| Discard Thickness | 1.201 IN |
| Nominal Thickness | 1.260 IN |
| Nominal Thickness | 32.000 MM |
| Hat Finish | Coated |
| Overall Height | 56.500 MM |
| Overall Height | 2.224 IN |
| Outside Diameter | 370.000 MM |
| Outside Diameter | 14.567 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.854 IN |
| Center Hole Diameter | 72.500 MM |
| Mounting Bolt Hole Circle Diameter | 114.600 MM |
| Mounting Bolt Hole Circle Diameter | 4.512 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.654 IN |
| Stud/Lug Hole Diameter | 16.600 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890984818 |
CENTRIC 120.63086 Cross References
| Brand | Part Number |
|---|---|
| N/A | 850358, E125-68-091, 43196, 90040035, 43196G, E12568091, 68184337AA, 68184337AB, 72137 |
| NEOTEK | 1070121GF |
| Neotek Premium Drums and Rotors | 1070121GF |
| PRONTO | BR90138402 |
| RAYBESTOS | 781774, 781774P, 781774R |
| Raybestos Brakes | 781774, 781774P, 781774R |
CENTRIC 120.63086 Fits Vehicles
- Dodge Challenger (2017-2022)
- Chrysler 300 (2014-2021)
- Dodge Charger (2014-2022)
