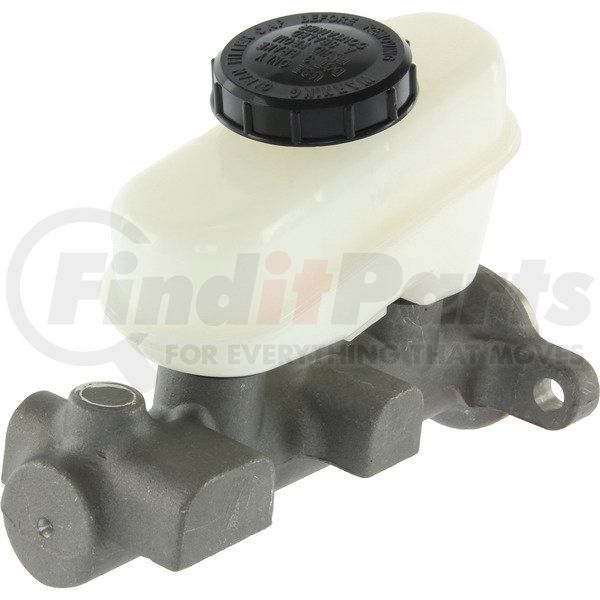

(888) 312-8812 Login SignupCENTRIC 131.61060 C-Tek Standard Brake Master Cylinder
Tap to view 6 more
$12299
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 11
CENTRIC 131.61060 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Master Cylinder
Features & Benefits
- Reservoirs and caps included. Pressure tested for worry free performance. Wide application coverage.
CENTRIC 131.61060 Specifications
Product Attributes
| Publication Bore [cntrc] | 1" |
| Boss, Nipple Or Port: Front, Right: #a [cntrc] | M12-1.00 bbl |
| Weight [cntrc] Lbs | 2.4 |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Product Grade [cntrc] | Standard |
| Push Rod: Length / Depth [cntrc] In | 1.41 |
| Boss, Nipple Or Port: Rear, Right: #a [cntrc] | M10-1.00 bbl |
| Weight [cntrc] Kgs | 1.09 |
| Secondary Outlet Flare Type [cntrc] | Bubble |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 25.400 MM |
| Master Cylinder Bore Diameter | 1.000 IN |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 10.000 MM |
| Secondary Outlet Thread Diameter | 12.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 3 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Straight |
| Bore Size | 25.400 MM |
| Bore Size | 1.000 IN |
| Secondary Outlet Thread Size | M12-1.00 |
| Primary Outlet Thread Size | M10-1.00 |
| Primary Outlet Flare Type | Bubble |
| Secondary Outlet Flare Type | Bubble |
| Primary Bore Diameter | 25.400 MM |
| Primary Bore Diameter | 1.000 IN |
| Reservoir Style | Removable |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8413919050 |
| UPC | 00805890961697 |
CENTRIC 131.61060 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | M390125 |
CENTRIC 131.61060 Fits Vehicles
- Ford Mustang (1993)
