STANDARD IGNITION part description

Product Description

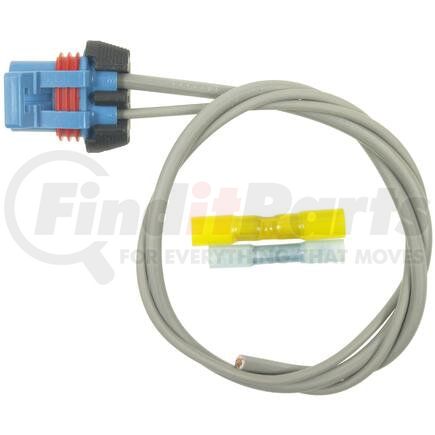

A/C Control Module Connector

Features & Benefits

  • High-quality direct replacement electrical connector allows you to replace only the damaged connector instead of the entire harness for a cost-effective repair
  • The terminal is manufactured with high grade materials such as copper alloy, brass, and phosphor bronze. The housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance
  • All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function
  • Offering thousands of high-quality pigtails and sockets for nearly every electrical job

Product Attributes

Attachment Method Push On
Bend Angle (Deg.) 0
Connector Gender Male
Connector Quantity 1
Connector Shape Oval
Contact Terminal Material Metal
Contents Includes O-Ring Seal
Dust Shield Included No
Harness Length - inches 13 1/2"
Length - Inches 1.25
Material Plastic
Number Of Splice Connectors Includ 2
Number of Wires 2
Splice Connectors Included Yes
Terminal Gender Female
Terminal Quantity 2
Terminal Type Blade
Water Resistant Yes
Weatherproof Sealed Yes
Wire Gauge (ga) 10, 14
Wire Quantity 2
Wiring Harness Included Yes
Wiring Harness Length (in) 17.25
Wiring Harness Length (mm) 438.15

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (HTS) 8536908585
Warranty Distance 36000
Warranty Distance UOM MI
Warranty Time 36
Warranty Time UOM MO
UPC 00025623732626

Part Interchanges

Fits Vehicles

  • Cadillac Eldorado (1986-1991)
  • Oldsmobile Custom Cruiser (1991-1992)
  • Chevrolet Corvette (1986-1989, 1992-1994)
  • Chevrolet Caprice (1991-1992)
  • Cadillac Fleetwood (1988-1989, 1993)
  • Cadillac DeVille (1991)
  • Buick Roadmaster (1991-1993)
  • Buick Riviera (1986, 1988, 1991)
  • Buick LeSabre (1987-1991)
