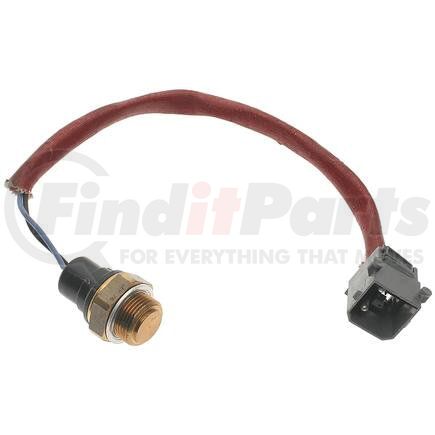

Standard Ignition TS-511 - Coolant Fan Switch
- Part Number
- TS-511
- Manufacturer
- STANDARD IGNITION
- Description
-
Coolant Fan Switch
details
$5049
5 day lead time
limited availability at this price!
Pay over 3-12 months with . Learn more
STANDARD IGNITION part description
Product Description
Coolant Fan Switch
Features & Benefits
- Robust design and high grade materials meet the stringent demands of today's service professional
- In design, we specify custom wax formulations that will expand when heated, activate a snap action electrical contact and transfer the electrical signal to the fan controller
- In manufacturing, we custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature
- The switch is designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance
- In production, all thermal switches are factory-calibrated to make electrical contact at the specified lower-temperature set point
- As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
Product Attributes
Attachment Method | Plug In |
Bulb Included | No |
Color/Finish | Black, Gold |
Connector Gender | Female |
Connector Quantity | 1 |
Connector Shape | Square |
Hardware Included | No |
Harness Length - inches | 11.5 |
Harness Length - mm | 292.1 |
Housing Material | Plastic, Metal |
Mounting Bracket(s) Included | No |
Open at Idle | Yes |
Overall Width (MM) | 23.622 |
Switch Actuation Style | Toggle |
Switch Shape | Square |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Pin; Bullet |
Thread Size | 22MMX1.50 |
Voltage | 12 |
Width - Inches | 0.93 |
Wire Quantity | 2 |
Wiring Harness Included | Yes |
Additional Information
Country of Origin (Primary) | IT |
Harmonized Tariff Code (HTS) | 8536509065 |
Warranty Distance | 36000 |
Warranty Distance UOM | MI |
Warranty Time | 36 |
Warranty Time UOM | MO |
UPC | 00091769804695 |
Part Interchanges
Fits Vehicles
- Saab 9000 (1990-1994)
