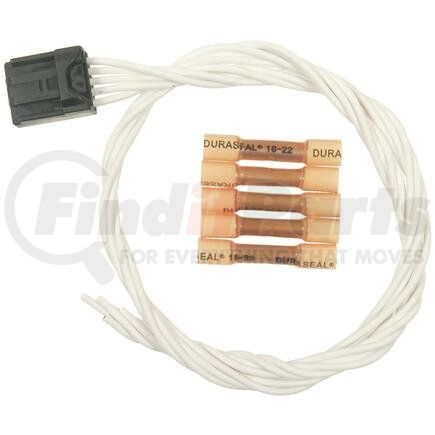

Standard Ignition S-1683 - HVAC Temperature Blend Door Actuator Connector
- Part Number
- S-1683
- Manufacturer
- STANDARD IGNITION
- Description
-
HVAC Temperature Blend Door Actuator Connector
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
STANDARD IGNITION part description
Product Description
HVAC Temperature Blend Door Actuator Connector
Features & Benefits
- Offering hundreds of high-quality pigtails and sockets for nearly every electrical job
- Utilizing high grade materials to ensure peak conductivity and perfect connections
- Decades of industry leading research and development focused on meeting the technician's needs
- With industry leading expertise, when original equipment fails our products are designed to fix the inherent failure issues
Product Attributes
| Attachment Method | Push On |
| Bend Angle (Deg.) | 0 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Contact Terminal Material | Metal |
| Contents | Includes Butt Splices |
| Dust Shield Included | No |
| Length - Inches | 0.75 |
| Material | Plastic |
| Number Of Splice Connectors Includ | 5 |
| Number of Wires | 5 |
| Splice Connectors Included | Yes |
| Terminal Gender | Female |
| Terminal Quantity | 5 |
| Terminal Type | Blade |
| Water Resistant | No |
| Weatherproof Sealed | Yes |
| Wire Gauge (ga) | 20 |
| Wire Quantity | 5 |
| Wiring Harness Included | Yes |
| Wiring Harness Length (in) | 16.75 |
| Wiring Harness Length (mm) | 425.45 |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8536908585 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00025623225128 |
Part Interchanges
Fits Vehicles
- Honda CR-V (2002-2006)
- Honda Civic (2003-2005)
- Cadillac DTS (2006-2011)
- Cadillac CTS (2006-2008)
- Buick Lucerne (2006-2011)
- Cadillac XLR (2006-2009)
- Cadillac STS (2005-2009)
- Cadillac SRX (2004-2009)
- Pontiac Vibe (2003-2007)
