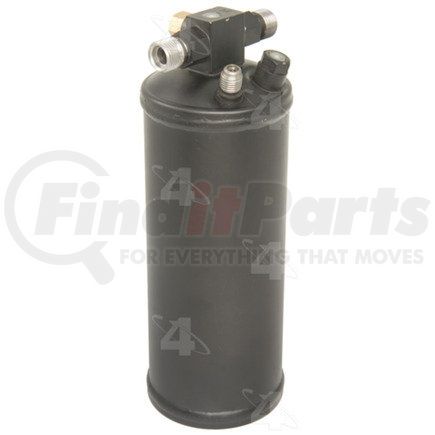

Name: Four Seasons 83710 Steel Filter Drier
SKU: 83710
Price: 25.49 USD
Availability: InStock

FOUR SEASONS part description

Product Description

Steel Filter Drier

Features & Benefits

As a manufacturer in accumulator/filter driers, we offer quality units produced in a ISO/TS16949 & ISO14001 certified facility. State-of-the-art equipment and high quality materials ensure product integrity for long lasting performance customers rely on.
As a manufacturer in accumulator/filter driers, we offer quality units produced in a ISO/TS16949 & ISO14001 certified facility. State-of-the-art equipment and high quality materials ensure product integrity for long lasting performance.
Our accumulator / filter driers feature quality welds for a durable, leak-free design in addition to high-quality desiccant for appropriate absorption. For easy installation, necessary gaskets, o-rings and seal are included as well.
The accumulator / filter drier acts as a filter by removing moisture and contaminants from the air conditioning system. Such contaminants cannot be removed by flushing, therefore replacing the accumulator / filter drier is essential.
The absorption of moisture in the system is done through the use of a desiccant bag. A leaking or “open” system can cause the bag to become saturated within a few hours making the accumulator/filter drier ineffective.
The absorption of moisture in the system is done through the use of a desiccant bag. A leaking or "open" system can cause the bag to become saturated within a few hours making the accumulator/filter drier ineffective.
Replacement of the accumulator / filter drier is required to validate compressor warranty and must be replaced anytime the system is serviced.

Product Attributes

Moisture Indicator Window	No
Desiccant	Yes
Body Length	9.250 IN
Mounting Bracket Included	Not Included
In Line Filter Material	Desiccant
Body Diameter	3.000 IN
Desiccant Replaceable	Not Replaceable
Material	Steel
1178	0.625 in
797	0.375 in
Outlet Fitting Type	Male Insert O-Ring
Fuse Plug	No
In Line Filter Outlet Fitting Type	Male
Type	Washer Not Included
Inlet Fitting Type	Male Insert O-Ring
Inlet Filter Fitting Type	Male
Bracket?	w/o Bracket
Connector B Type	Male Insert O-Ring
Connector Type	Male Insert O-Ring
Description	Filter Driers
Dia. Mm	76.2 mm
Gasket / Seals?	Included
Inlet Fraction	3/8 in
Inlet In	0.375 in
Inlet Mm	9.525 mm
Length Mm	234.95 mm
Meets / Exceeds Oem?	Yes
O-ring A Number/desc	24676 / Green O-Ring
O-Ring A Quantity	1
O-ring B Number/desc	24606 / Green O-Ring
O-Ring B Quantity	2
Outlet Fraction	3/8 in
Outlet In	0.375 in
Outlet Mm	9.525 mm
Overall Depth In	9.250 in
P. R. V.?	Yes
Service Port?	w/ Service Port
Sight Glass?	Yes
Style	Steel Filter Drier
Switch Port Dia. In	0.250 in
Switch Port Dia.mm	6.350 mm
Switch Port?	w/ Switch Port
Des Replaceable?	Not Replaceable
Desiccant Included?	Yes
Dia. In	3.000 in
Filter Material	Desiccant
Fitt Thrd Dia In	0.625 in
Fuse Plug?	No
In Fltr Fitt Typ Gen	Male
Inlet Dia. In	0.375 in
Inlet Type	Male Insert O-Ring
Length In	9.250 in
Material	Steel
Moisture Indicator?	No
Mounting Hardware?	Not Included
Out Fitt Type Gen	Male
Outlet Type	Male Insert O-Ring
Washer Type	Washer Not Included

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8415908045
Harmonized Tariff Code (HTS)	8421290065
MSDS Sheet Number	0
Stock Status	S
UPC	00096361837102

Part Interchanges

Fits Vehicles

Volvo VNX (2014)
Mack Vision (2015)
Mack Granite 8 X 4 (2015)
Mack TerraPro (2015)
Mack Granite (2015)
Volvo VT (2006-2010)
Autocar C / DC (1984-1986)
Volvo VNM (2000-2014)
Volvo VNL (2000-2014)
Volvo FE (1992-1998)
Volvo VHD (2001-2014)
Volvo WX (1996-2004)
Volvo WH (1996-1997)
Volvo WAH (1996-2002)
Volvo WC (1996-1999)
Volvo ACL (1996-2002)
Volvo WI (1996-1998)
Volvo WG (1996-2001)
Volvo VN (1998-1999, 2004)
Autocar S (1984)
Mack CHU (2008-2015)
Mack CXN (2006-2008)
Mack CHN (2006-2007)
Mack CXP (2006-2007)
Mack CXU (2008-2015)
Autocar DS (1984-1988)
Autocar DK (1984-1988)
Autocar ACL (1984-1988)
Autocar AT (1984-1988)
Autocar LLC. Xpeditor WXLL (2002-2006)
Autocar LLC. Xpeditor WX (2002-2006)
Autocar LLC. Xpeditor WXR (2003-2006)
White/GMC J8C0 (1988-1989)
White WHM (1984-1987)
White/GMC WHM (1988-1989, 1991)
White WIL (1984-1988)
White/GMC WHEB (1991-1995)
White/GMC WIL (1988-1992)
White/GMC WAH (1990-1995)
White/GMC WHLB (1991-1995)
White WXLL (1986-1988)
White WHS (1984-1988)
White WHL (1984-1988)
White WCL (1984-1988)
White WCA (1988)
White/GMC WIS (1988-1991)
White/GMC WIM (1988-1994)
White/GMC WHS (1988-1991)
White/GMC WHR (1989-1995)
White/GMC J9C0 (1988-1989)
White WIS (1984-1988)
White WX (1984-1988)
White WIM (1984-1988)
White WCS (1984-1988)
White WCM (1984-1988)
White/GMC WHL (1988-1995)
White/GMC WCS (1988-1991)
White/GMC ACM (1988-1992)
White/GMC WCM (1988-1995)
White WIA (1988)
White/GMC WCL (1988-1993)
White/GMC ACL (1988-1995)
White/GMC WIA (1988-1995)
White/GMC WCA (1988-1995)
White/GMC WXR (1993-1995)
White/GMC WXLM (1991-1993)
White/GMC WXLL (1988-1995)
White/GMC WX (1988-1995)
White/GMC WG (1990-1995)

Quality, coverage, service—these are the Four Seasons® promise. A brand under the SMP Temperature Control Division, Four Seasons produces and supplies the automotive and truck parts market with a full line of replacement mobile climate control solutions. Four Seasons is one of the industry's largest aftermarket mobile climate control products suppliers and the world's largest compressor remanufacturer. With its unparalleled expertise and continuously expanding global reach, Four Seasons' customers can enjoy top-quality products that are meticulously tested, inspected, and validated before rolling out of the company's assembly plant. Four Seasons is both a manufacturer and a remanufacturer that strives to maintain excellent quality standards, sound reputation, and continuous innovation that keep it ahead of the competition.
