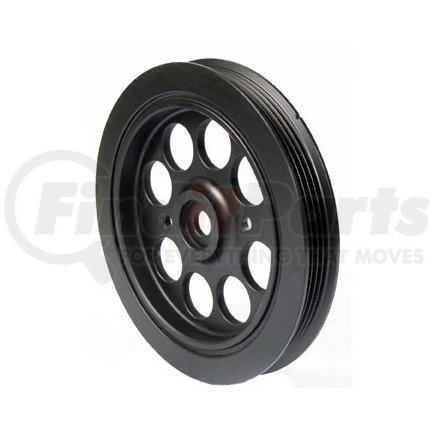

Dayco PB1594N - PREMIUM OEM REPL BALANCER, POWERBOND
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
DAYCO part description
Product Description
PREMIUM OEM REPL BALANCER, POWERBOND
Product Attributes
| Overall Outside Diameter | 6.457 in |
| Overall Outside Diameter | 164 mm |
| Crank Bore | 1.005 in |
| Crank Bore | 25.51 mm |
| Overall Width | 0.857 in |
| Overall Width | 21.75 mm |
| Nose Outside Diameter | 1.418 in |
| Nose Outside Diameter | 36 mm |
| Ring Width | 0.857 in |
| Ring Width | 21.75 mm |
| Bolt Hole Quantity | 2 |
| Crank Trigger/Exciter Plate | No |
| Woodruff Key Included | No |
| Hardware Included | No |
| Counterweight Balance | Neutral, no counterweight |
| Timing Marks | Yes |
| Installation Instructions Included | No |
| Number of Integrated Pulleys | 1 |
| Pulley 1 Type | Serpentine |
| Pulley 1 Number Of Grooves | 4 mm |
| Outer Ring Material | Cast Iron |
Additional Information
| Country of Origin (Primary) | AU |
| Harmonized Tariff Code (Schedule B) | 8483509080 |
| UPC | 09317010002544 |
Fits Vehicles
- Toyota Yaris iA (2017-2018)
- Toyota Yaris (2006-2018)
