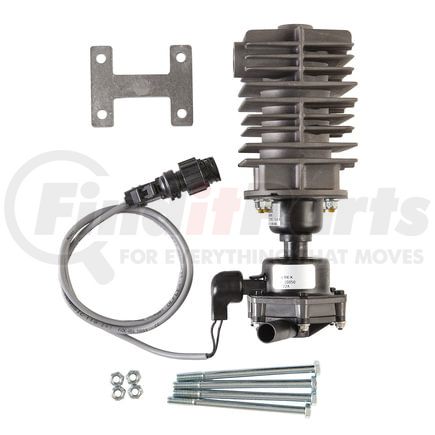

Haldex 412-10050 - Air Brake Dryer - 24 Volt/0.5 AMP, Vertical Mounting, 290 PSI
$34999
MSRP: $564.58
Save: $214.59
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
HALDEX part description
Product Description
Consep™ Condenser/Separator with Metric Ports
Features & Benefits
- Designed to effectively filter oil, liquid, and other contaminants prior to passage through the air system
- Made to purge contaminants with each brake application
- Corrosion-resistant and helps prevent premature air system components failure
- Improves the service life of the air dryer desiccant
Haldex Consep™ Condenser/Separator
Make sure only clean air goes through the air system with the Haldex Consep™ condenser/separator. Manufactured by a brand with over 100 years of engineering expertise, this product is designed to offer maximum efficiency and performance at a competitive price.
Product Attributes
| Amperage Rating | 0.5 AMP/ 1 AMP |
| Drain Capacity | 1.3cc/purge @ 116 PSI |
| Freight Class | 70 |
| Maximum Operating Pressure | 290 PSI |
| Maximum Working Temperature | 175°F |
| Minimum Working Temperature | -40°F |
| Mounting Position | Vertical |
| Voltage | 24V / 12V |
Additional Information
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (Schedule B) | 8421398015 |
| Harmonized Tariff Code (HTS) | 8421398015 |
| Remanufactured Part | Y |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | See Haldex Aftermarket Product warranty Policy (L20221W).pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653357065 |
| VMRS Code | 013010252 |
Part Interchanges
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
