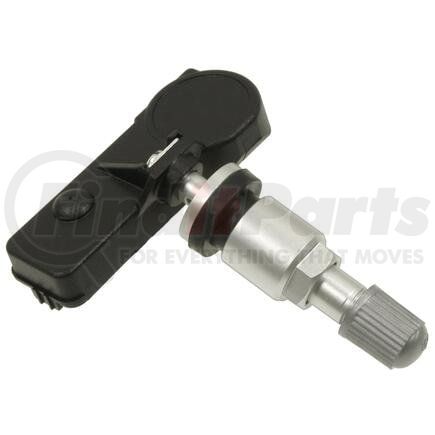

Standard Ignition TPM149A - Tire Pressure Monitoring System OE Design Sensor
- Part Number
- TPM149A
- Manufacturer
- STANDARD IGNITION
- Description
-
Tire Pressure Monitoring System OE Design Sensor
details
$4549
MSRP: $97.42
Save: $51.93
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STANDARD IGNITION part description
Product Description
Tire Pressure Monitoring System OE Design Sensor
Features & Benefits
- Pre-programmed at the factory with exact OE protocol, so it's ready to be installed and OE-relearned out of the box
- Designed and manufactured to meet or exceed OE performance in compliance with all SAE2657 specifications
- Undergoes extensive testing-including operational temperature, thermal shock, extreme temperature, humidity, frost, proof pressure, rapid deflation, contamination, salt fog, drop, centrifugal force vehicle speed, mechanical vibration tests-to ensure durab
- Validated at independent lab during 168-hour on-vehicle live test
- Military-grade lithium battery ensures maximum battery life and sensor performance
- Low-power wakeup timer and periodic reset driven by Low-Frequency Output (LFO) maximizes shelf life, extends battery life, and maintains optimum performance levels
- Z-axis or duel XY-axis accelerometers on IC chip ensure more precise readings on tire positions and rotational direction
- External-crystal oscillator provides frequency stability and more accurate frequency ranges, ensuring more reliable communications between sensors and vehicle receivers
- Fully assembled with nickel-plated valve core and aircraft-grade 6061 aluminum clamp-in valve stem to prevent premature breaking and resist galvanic corrosion
- Unique ID Cloning functionality allows you to clone/copy unique ID from one sensor to another
Product Attributes
| Battery -powered | Yes |
| Connector Type | Bolt On |
| Core Material | Nickel Coated Core |
| Frequency | 315 MHZ |
| Inflation Valve Type | Metal |
| Mounting Hardware Included | Yes |
| Mounting Location | Wheel |
| Mounting Method | Clamp In |
| O.e.m. Replacement | No |
| Real Time Pressure Signal | Yes |
| Sensor Nut Torque (in/lbs) | 44 |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (HTS) | 9026204000 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00025623987897 |
Part Interchanges
- Echlin 92-1178C
- CARQUEST 20156
- BWD TPM149A
- Volvo 307489910
- Volvo 31200923
- Volvo 312009230
- Volvo 312009236
- Meyers Tire Supply 21127
- Meyers Tire Supply 21163
- Dill Air Control 9156
- Dorman 974-025
- Dorman 974-075
- Airaware 20156
- DENSO 550-2901
- DENSO 550-2906
- BWD Intermotor TPM149A
- NAPA Solutions 974-075
- NAPA Solutions 974075
- Orange Electronic SC8991
- 25740352
Fits Vehicles
- Volvo XC90 (2003-2014)
- Volvo XC70 (2003-2007)
- Volvo V70 (2000-2007)
- Volvo S80 (2000-2006)
- Volvo S60 (2001-2009)
- Cadillac CTS (2008)
