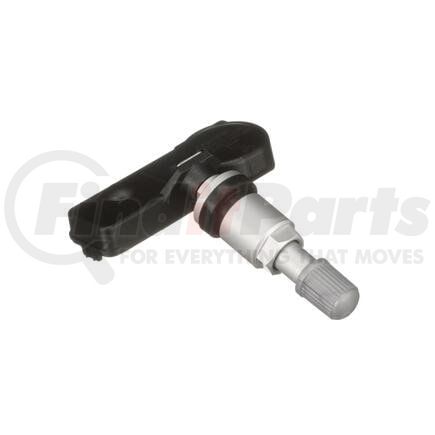

Standard Ignition TPM116A - Tire Pressure Monitoring System OE Design Sensor
- Part Number
- TPM116A
- Manufacturer
- STANDARD IGNITION
- Description
-
Tire Pressure Monitoring System OE Design Sensor
details
$4149
MSRP: $87.63
Save: $46.14
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STANDARD IGNITION part description
Product Description
Tire Pressure Monitoring System OE Design Sensor
Features & Benefits
- Pre-programmed at the factory with exact OE protocol, so it's ready to be installed and OE-relearned out of the box
- Designed and manufactured to meet or exceed OE performance in compliance with all SAE2657 specifications
- Undergoes extensive testing-including operational temperature, thermal shock, extreme temperature, humidity, frost, proof pressure, rapid deflation, contamination, salt fog, drop, centrifugal force vehicle speed, mechanical vibration tests-to ensure durab
- Validated at independent lab during 168-hour on-vehicle live test
- Military-grade lithium battery ensures maximum battery life and sensor performance
- Low-power wakeup timer and periodic reset driven by Low-Frequency Output (LFO) maximizes shelf life, extends battery life, and maintains optimum performance levels
- Z-axis or duel XY-axis accelerometers on IC chip ensure more precise readings on tire positions and rotational direction
- External-crystal oscillator provides frequency stability and more accurate frequency ranges, ensuring more reliable communications between sensors and vehicle receivers
- Fully assembled with nickel-plated valve core and aircraft-grade 6061 aluminum clamp-in valve stem to prevent premature breaking and resist galvanic corrosion
- Unique ID Cloning functionality allows you to clone/copy unique ID from one sensor to another
Product Attributes
| Battery -powered | Yes |
| Connector Type | Bolt On |
| Core Material | Nickel Coated Core |
| Frequency | 315 MHZ |
| Inflation Valve Type | Metal |
| Mounting Hardware Included | Yes |
| Mounting Location | Wheel |
| Mounting Method | Clamp In |
| O.e.m. Replacement | Yes |
| Real Time Pressure Signal | Yes |
| Torx Bolt Torque (in/lbs) | 11.5 |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (HTS) | 9026204000 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00025623987989 |
Part Interchanges
Fits Vehicles
- VPG MV-1 (2011-2012)
- Mercury Milan (2010-2011)
- Ford Transit-350 HD (2015-2020)
- Ford Special Service Police Sedan (2014-2018)
- Lincoln MKC (2015-2018)
- Ford Transit-350 (2015-2019)
- Ford Transit-150 (2015-2019)
- Ford Transit-250 (2015-2019)
- Ford Police Interceptor Sedan (2013-2019)
- Ford Fiesta Ikon (2011-2015)
- Ford Mustang (2013-2014)
- Lincoln MKZ (2009-2016)
- Ford Police Interceptor Utility (2013-2015)
- Lincoln Navigator (2011-2017)
- Ford C-Max (2013-2018)
- Ford Edge (2011-2014)
- Lincoln MKS (2011-2016)
- Ford Explorer (2011-2015)
- Lincoln MKX (2011-2015)
- Ford E-250 (2010-2014)
- Ford Fusion (2010-2016)
- Lincoln MKT (2011-2019)
- Ford Taurus (2010-2019)
- Ford Transit (2010-2019)
- Ford Expedition (2011-2017)
- Ford Transit Connect (2010-2018)
- Ford E-350 Super Duty (2010-2019, 2021-2023)
- Ford F-250 Super Duty (2010-2016)
- Ford Fiesta (2011-2019)
- Ford Flex (2011-2019)
- Ford Focus (2010-2018)
- Ford E-450 Super Duty (2010-2019, 2021-2023)
- Ford E-150 (2010-2014)
- Mazda Tribute (2009-2011)
- Ford F-150 (2009-2014)
- Ford Escape (2009-2019)
- Ford F-450 Super Duty (2009-2016)
- Ford F-350 Super Duty (2009-2016)
- Mercury Mariner (2009-2011)
