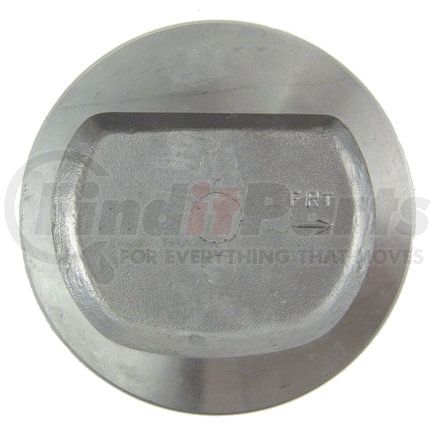

Sealed Power 525AP 30 - Sealed Power 525AP 30 Engine Piston Set
- Part Number
- 525AP 30
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power 525AP 30 Engine Piston Set
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.931 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 3.8750 IN |
| Piston Material | Cast Aluminum |
| 9607 | 1.580 IN |
| Dome Volume CC | Negative 014.0 |
| Head Illustration | 12 |
| Head Type | Recessed Head .116 deep - 9.2:1 C.R. |
| Minimum Clearance | 0.001 @ 2.420 from top of head |
| Oversized Amount | 0.030 IN |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Bore Diameter | 98.42 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 23.647 MM |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046935266 |
Part Interchanges
Fits Vehicles
- American Motors Eagle (1983-1984)
- Jeep Wrangler (1987-1995)
- Jeep Wagoneer (1984-1987)
- Jeep Scrambler (1983-1985)
- Jeep Comanche (1986-1992)
- Jeep Cherokee (1984-1995)
- Jeep CJ7 (1983-1986)
- Eagle Premier (1988-1989)
