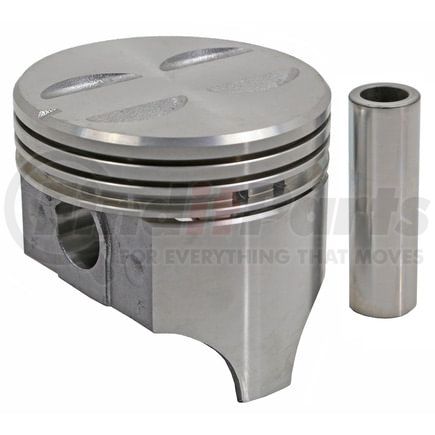

Name: Sealed Power 295P30 Sealed Power 295P 30 Engine Piston Set
SKU: 295p30
Price: 283.92 USD
Availability: InStock

SEALED POWER part description

Product Description

Engine Piston Set

Features & Benefits

Cast with FM132 Eutectic proprietary alloy
Performance & dependability of original equipment pistons
High quality aluminum
Utilizes ISO & QS certified manufacturing
Meets or exceeds OEM specifications

Product Attributes

Oversized	Yes
Top Compression Ring Thickness	0.0781 IN
Second Compression Ring Thickness	0.0781 IN
Oil Ring Thickness	0.1875 IN
Piston Pin Outside Diameter	0.9275 IN
Assembly Lubricant Included	No
Bore Diameter	3.8750 IN
Piston Material	Cast Aluminum
9607	1.655 IN
Head Illustration	26
Head Type	Flat Head w/4 valve reliefs
Minimum Clearance	0.001 @ 2.510 from top of head
Oversized Amount	0.030 IN
Part Description	Engine Piston
Pin Offset (Inch)	0.06
Pin Offset (MM)	1.524
Bore Diameter	98.4 MM
Grade Type	Premium
Piston Pin Outside Diameter	23.559 MM

Additional Information

Country of Origin (Primary)	IN
Canadian Harmonizing Tariff Code	8409910010
Harmonized Tariff Code (Schedule B)	8409915085
Harmonized Tariff Code (HTS)	8409915085
UPC	00614046899469

Part Interchanges

Fits Vehicles

Chevrolet Townsman (1969, 1971-1972)
Chevrolet P30 Van (1968-1969, 1973)
Chevrolet P20 Van (1968-1969, 1973)
Chevrolet Malibu (1973)
Chevrolet Laguna (1973)
Chevrolet Kingswood (1969, 1971-1972)
Chevrolet K30 Pickup (1968-1973)
Chevrolet K20 Suburban (1968-1973)
Chevrolet K20 Pickup (1968-1973)
Chevrolet K10 Suburban (1968-1973)
Chevrolet K10 Pickup (1968-1973)
Chevrolet Impala (1968-1969, 1971-1973)
Chevrolet G20 Van (1968-1973)
Chevrolet G10 Van (1968-1973)
Chevrolet El Camino (1968-1973)
Chevrolet Chevy II (1968)
Chevrolet Chevelle (1968-1973)
Chevrolet Caprice (1968-1969, 1971-1973)
Chevrolet Camaro (1969-1973)
Chevrolet C30 Pickup (1968-1973)
Chevrolet C20 Suburban (1968-1973)
Chevrolet C20 Pickup (1968-1973)
Chevrolet C10 Suburban (1968-1973)
Chevrolet C10 Pickup (1968-1973)
Chevrolet Brookwood (1969, 1971-1972)
Chevrolet Blazer (1969-1973)
Chevrolet Biscayne (1968)
Chevrolet Bel Air (1968)
Checker Marathon (1968)
Chevrolet Estate (1969-1970)
Pontiac Strato-Chief (1968-1970)
Pontiac Parisienne (1968-1970)
Pontiac Laurentian (1968-1969)
Pontiac Beaumont (1968-1969)
Chevrolet Nova (1969-1973)
Pontiac Acadian (1968-1971)
Pontiac Ventura (1971-1973)
GMC Sprint (1971-1973)
GMC P35/P3500 Van (1968-1973)
GMC P25/P2500 Van (1968-1973)
GMC K35/K3500 Pickup (1968-1973)
GMC K25/K2500 Suburban (1968-1973)
GMC K25/K2500 Pickup (1968-1973)
GMC K15/K1500 Suburban (1968-1973)
GMC K15/K1500 Pickup (1968-1973)
GMC Jimmy (1970-1973)
GMC G35/G3500 Van (1970-1973)
GMC G25/G2500 Van (1968-1973)
GMC G15/G1500 Van (1968-1973)
GMC C35/C3500 Pickup (1968-1973)
GMC C25/C2500 Suburban (1968-1973)
GMC C25/C2500 Pickup (1968-1973)
GMC C15/C1500 Suburban (1968-1973)
GMC C15/C1500 Pickup (1968-1973)
