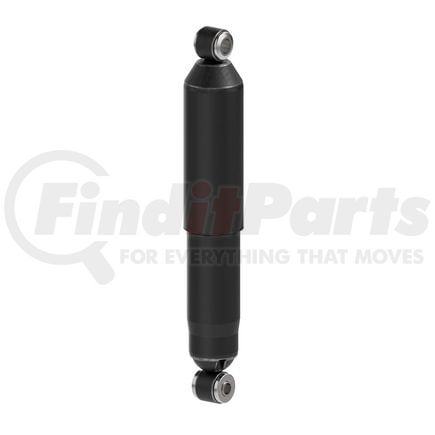

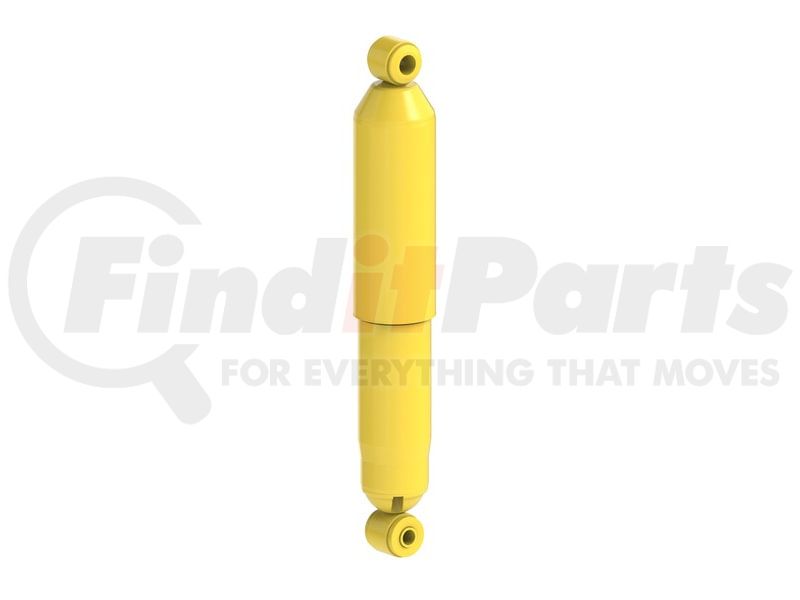

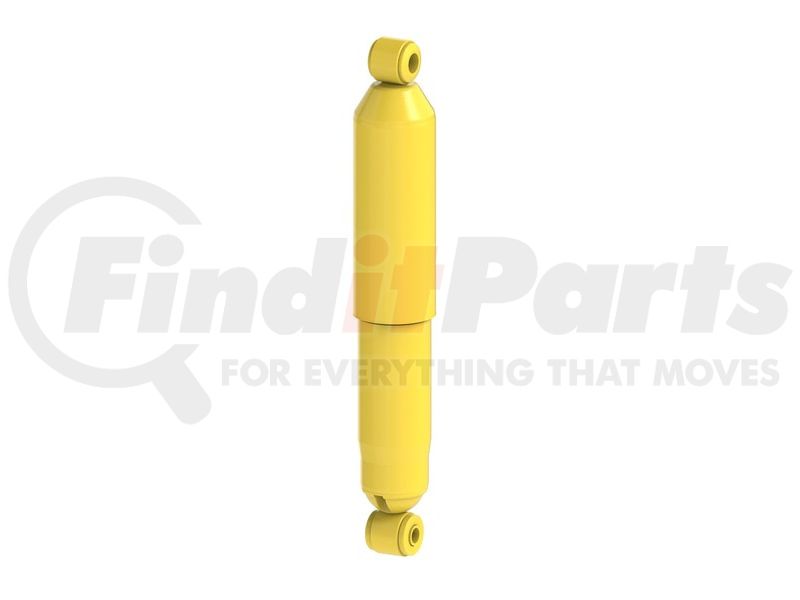

Name: Monroe 34770 Gas-Magnum Suspension Shock Absorber
SKU: 34770
Price: 46.99 USD
Availability: InStock

MONROE part description

Product Description

Gas-Magnum Suspension Shock Absorber

Features & Benefits

DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee

Product Attributes

9791	LS26
9789	L1
Dust Shield Included	Yes
9783	No
9908	No
9792	No
Part Description	Shock Absorber
Compressed Length	16.19 IN
Extended Length	27.01 in
Gas Charged	Yes
Lower Mount Type	Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
Parts Pack(s)	None
Travel Length	10.82 in
Upper Mount Type	Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Compressed Length	411.2 MM
Extended Length	686.1 MM
Travel Length	274.8 MM
Shock Absorber Rod End Measuring Point	Center of Loop
Shock Absorber Body End Measuring Point	Center of Loop

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598136879
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

MONROE 34770 Cross Reference

We have 12 alternatives for the 34770 by MONROE:

Fits Vehicles

Ford F-250 Super Duty (2005-2016)
Ford F-350 Super Duty (2005-2016)
