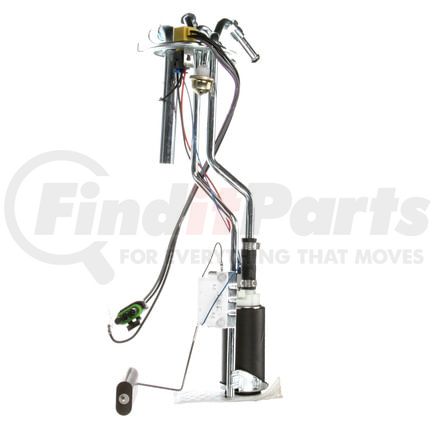

Delphi HP10025 - Fuel Pump Hanger Assembly
$25899
MSRP: $495.32
Save: $236.33
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Fuel Pump Hanger Assembly
Product Attributes
| Position(s) | Left |
| Item Grade | Standard Replacement |
| System Pressure | 44 psi |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, Lock Ring, (2) O-rings, Instruction Sheet |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12.0 2H |
| Fuel Type | Gas |
| Maximum Pressure | 73.0 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 3 |
| Terminal Gender | Female |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Hose |
| Outlet Quantity | 4 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 1.0 82 |
| Resistance Ohms Full | 90.0 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 4.0 68 |
| Average Flow Rating | 31.0 GPH |
| Material | Metal |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Shape | Rectangle |
| Lock Ring Included | Yes |
| Connector Gender | Male |
| Inlet Quantity | 1 |
| Fuel Pump Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 44 PS |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | MX |
| UPC | 00689604187456 |
| VMRS Code | 044003257 |
| UNSPSC | 40151532 |
Part Interchanges
DELPHI HP10025 Cross Reference
We have 4 alternatives for the HP10025 by DELPHI:
Fits Vehicles
- GMC C3500HD (1991-1997)
- Chevrolet C3500HD (1991-1997)
- GMC K3500 (1990-1996)
- GMC C3500 (1990-1996)
- Chevrolet K3500 (1990-1996)
- Chevrolet C3500 (1990-1996)
