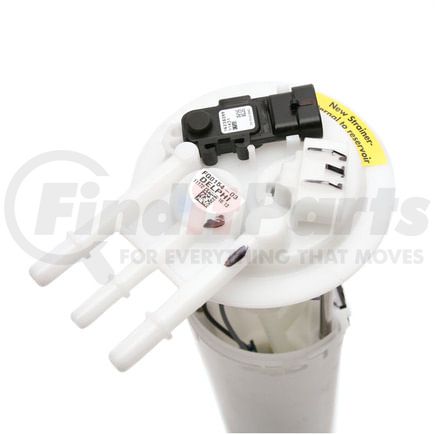

Delphi FG0154 - Fuel Pump Module Assembly
$37249
MSRP: $754.02
Save: $381.53
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Fuel Pump Module Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet |
| Vapor Pressure Sensor | Yes |
| Fuel Level Sender Assembly Included | Yes |
| System Pressure | 58 psi |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 13 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 109 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 40 82 |
| Resistance Ohms Full | 250 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 10 68 |
| Average Flow Rating | 29 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Wire Quantity | 4 |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 58 PS |
| Wire Harness Included | Yes |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | Yes |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604060919 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
Part Interchanges
- General Motors 19177262
- General Motors 25323845
- General Motors 25338871
- 9535082
- Bosch 67300
- Bosch 67436
- ACDelco MU1730
- ACDelco MU230
- Magneti Marelli 1AMFP00180
- EVO Driveline RE0385S
- Carter P74921M
- Airtex E3368M
- Spectra Premium SP3368M
- Master Parts Division E3368M
- DENSO Auto Parts 953-5082
- AutoZone DFG0154
- General Motors 19331246
- Precision Fuel A27065
- USEP3368M
- C0164M
- 19369891
DELPHI FG0154 Cross Reference
We have 2 alternatives for the FG0154 by DELPHI:
Fits Vehicles
- Pontiac Firebird (1999-2002)
- Chevrolet Camaro (1999-2002)
