DELPHI part description

Product Description

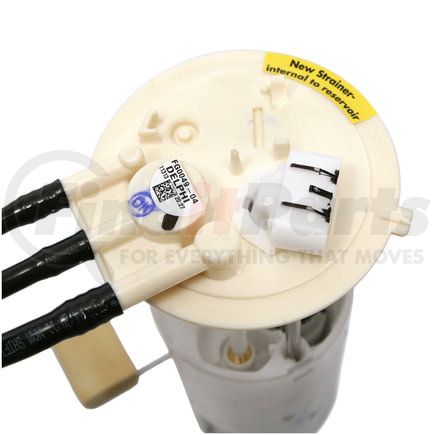

Fuel Pump Module Assembly

Product Attributes

Fuel Level Sender Assembly Included Yes
Vapor Pressure Sensor No
System Pressure 44 psi
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
Item Grade Standard Replacement
Outlet Outside Diameter 0.375 IN
Voltage 13 2H
Fuel Type Gas
Regulator Included No
Maximum Pressure 109 PS
Terminal Type Blade
Gasket Or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Female Quick Connect
Outlet Quantity 3
In Tank or External In Tank
Resistance Ohms Empty 0.1 82
Resistance Ohms Full 90 82
Internal Or External Strainer External
Pump Type Electric
Average Current Draw 7 68
Average Flow Rating 12 GPH
Fuel Sending Unit Included Yes
Negative Ground No
Mounting Hardware Included No
Wire Quantity 4
Grade Type Premium
Connector Quantity 1
Connector Shape Oval
Housing Material Plastic
Installation Warnings No
Connector Gender Female
Fuel Filter Included No
Gasket Or Seal Material Nitrile Rubber
Minimum Pressure 44 PS
Wire Harness Included Yes
Pump Design Turbine
Fuel Tank Pressure Sensor Included Yes

Additional Information

Harmonized Tariff Code (HTS) 8413309030
Warranty Special Limited Lifetime
Warranty Special UOM LF
Harmonized Tariff Code (Schedule B) 8413309000
Country of Origin (Primary) TH
UPC 00689604059869
VMRS Code 044003258
UNSPSC 25172409

Part Interchanges

DELPHI FG0049 Cross Reference

We have 2 alternatives for the FG0049 by DELPHI:

Fits Vehicles

  • Pontiac Sunfire (1995)
  • Chevrolet Cavalier (1995)
