GATES part description

Product Description

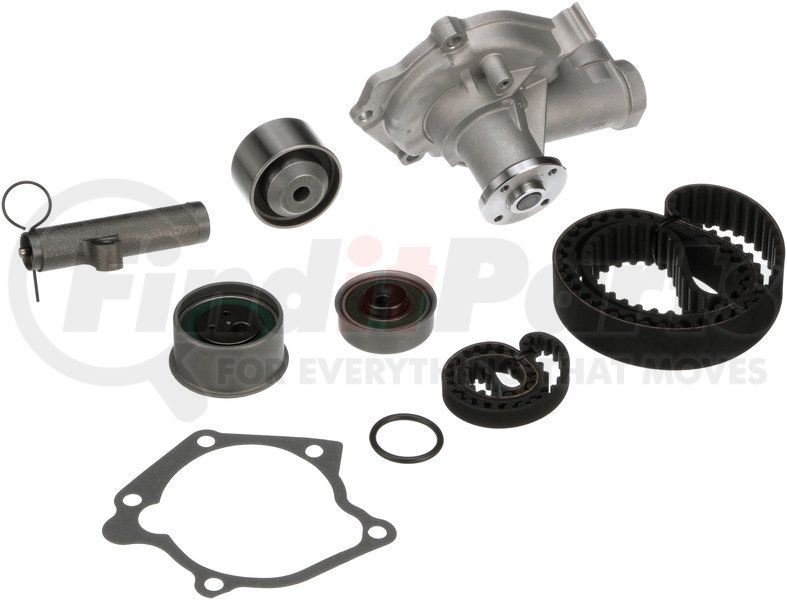

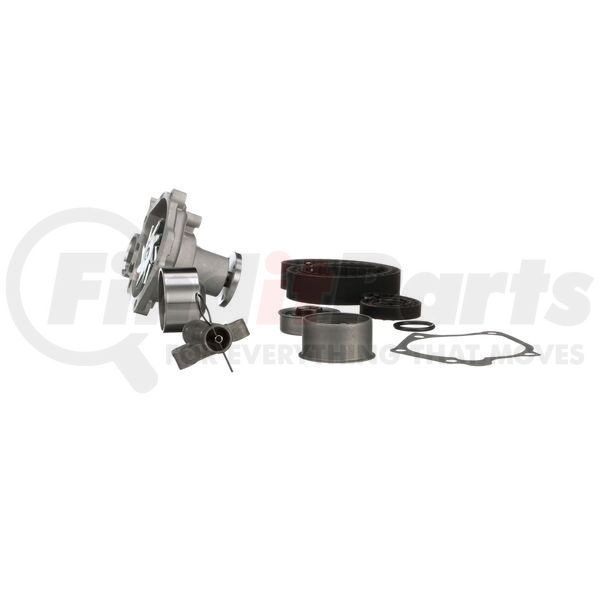

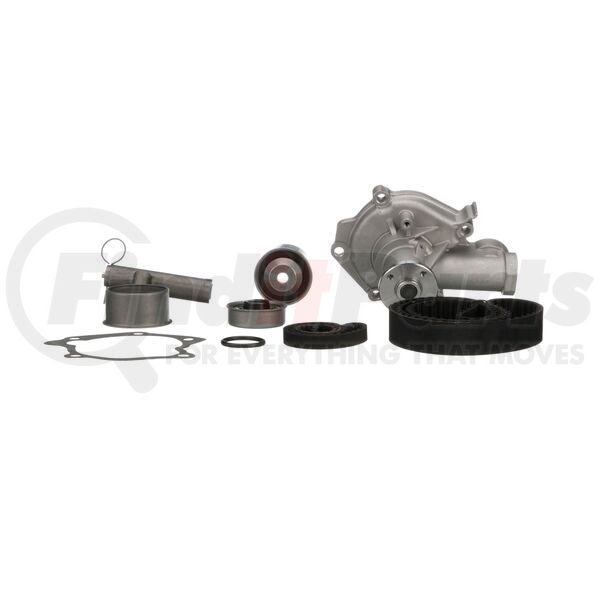

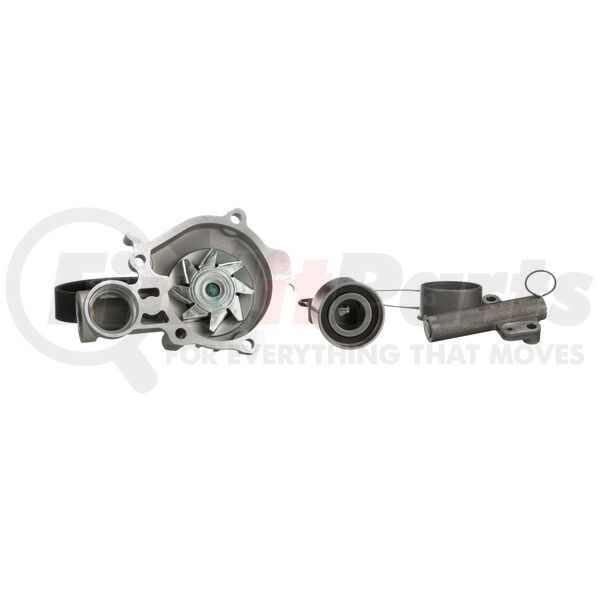

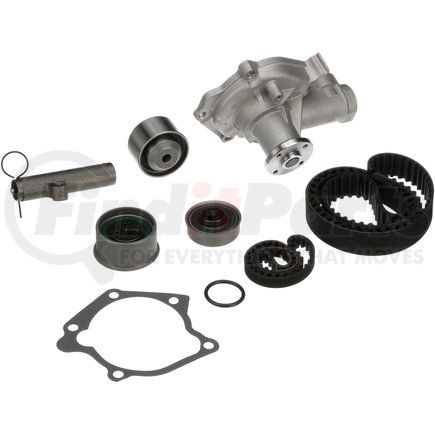

PowerGrip Premium Timing Component Kit with Water Pump (TCKWP)

Application Summary

2005-01 Dodge, Stratus, 4-Cyl. 2.4 L, Timing Component Kit

Features & Benefits

  • Total solution for any application: Includes belts, idler(s), tensioners, tensioner springs, water pump, supporting hardware, detailed installation instructions and Technical Service Bulletins for troublesome applications
  • Water pumps are designed and built for long lasting, efficient cooling
  • Hydraulic tensioners included, where needed
  • Everything you need to do the job right, all in one box
  • Gates warranty matches the original manufacturer's timing belt replacement intervals - not just for parts - but also for labor and other associated costs
  • Gates warranty matches the original manufacturer's timing belt replacement intervals – not just for parts – but also for labor and other associated costs

Product Attributes

Grade Type OE Performance
Number of Components 7
Installation Tool Included No
Belt Quantity 2
925 1.142, .5 IN
Cog Quantity 65, 123
Timing Marks No, No
Belt Material HSN, Fiberglass Cord; HSN, Fiberglass Cord
Tooth Type Modified Curvilinear (III), Modified Curvilinear (III)
9826 3
Tensioner Type Spring, Spring
9825 1
Bolt Included No
Spring Quantity 0
Bolt Quantity 0
9827 1
Gasket Or Seals Included Yes
Gasket Quantity 1
9841 1
Contents 2 Belts, 2 Tensioners, 1 Hydraulic Tensioner, Idler, Water Pump, Gasket, O-Ring
Instruction Sheet Number 0098-1627
Installation Instructions Included Yes
Belt Top Color Black
Timing Belt Included Yes
Springs Included No
Tensioner Included Yes
10004 Yes
Timing Belt Width 1 (in) 1.142
Timing Belt Width 1 (mm) 29
Timing Belt Width 2 (in) .5
Timing Belt Width 2 (mm) 13
Timing Belt 1 Teeth Quantity 123
Timing Belt 2 Teeth Quantity 65

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8413309090
UPC 00770075572336
VMRS Code 045008153
UNSPSC 26111811

Part Interchanges

Fits Vehicles

  • Mitsubishi Eclipse (2000-2004)
  • Mitsubishi Galant (1999-2003)
  • Dodge Stratus (2001-2005)
  • Chrysler Sebring (2001-2005)
