Name: Four Seasons 58228 New GM R4 Heavy Compressor w/ Clutch
SKU: 58228
Price: 330.49 USD
Availability: InStock

FOUR SEASONS part description

New GM R4 Heavy Comp.

Product Description

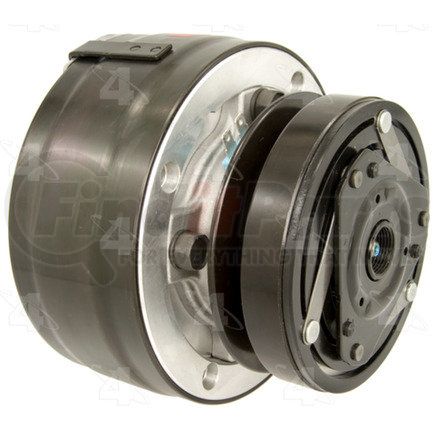

New GM R4 Heavy Compressor w/ Clutch

Features & Benefits

Manufactured Compressors meet or exceed OE specifications
Manufactured Compressors are validated for the equivalent of 100,000 miles
Manufactured Compressors come pre-charged with 3 ounces of PAG oil for R134a or R1234yf applications
Manufactured Compressors are individually vacuum,pressure, and Helium Mass Spectrometer tested to ensure no leaks
Manufactured Compressors come with the R12/R134A/1234yf required O-rings /sealing washers to install the compressor

Product Attributes

Switch Type	Pressure Switch
Terminal Type	Spade
Clutch Maximum Diameter	5.000 IN
Compatible Refrigerant Oil Type	PAG 150
Coil Clock Position	9
Switch Included	High Pressure
Clutch Included	Included
Mounting Type	Case Mount
Oil Filled	Included
Pulley Belt Type	V-Belt
9045	5.000 in
Pulley Groove Quantity	1
Distance From Clutch To Mounting Flange	1.2 IN
Refrigerant Type	R134a
Compressor Type	R4 Heavy
9044	5.000 in
Coil Voltage	12 2H
Electronic Control Valve	No
Mounting Hardware?	Not Included
New or Reman	New
O-ring A Number/desc	24359 / Short Sealing Washer Pilot
O-Ring A Quantity	1
O-ring B Number/desc	[24360] / Long Sealing Washer Pilot
O-Ring B Quantity	1
O-ring C Number/desc	[24356] / Red Sealing Washer
O-Ring C Quantity	2
O-ring D Number/desc	[24357] / Green Sealing Washer
O-Ring D Quantity	1
Printed Foot Note	Due to new enhancements, compressor may differ in appearance from OE Please refer to installation kit provided w/ each compressor.
Pulley Diameter Mm	127 mm
Reman W/o Clutch	57019
Suc Prt Typ Note	Block
Suction Port Type	O-Ring / Sealing Washer
Type	GM
Belt Type	V-Belt
Clutch Included	Included
Coil Clock	9
Coil Voltage	12 2H
Connector Type	Spade
Groove	1
Model	R4 Heavy
Mount Distance In	1.2 in
Mount Type	Case Mount
Oil Type	PAG 150
Part Note	Due to new enhancements, compressor may differ in appearance from OE Please refer to installation kit provided w/ each compressor.
Pulley Diameter In	5.000 in
Refrigerant Type	R134a
Switch / Sensor Desc	High Pressure
Switch Type	Pressure Switch

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8414308030
Harmonized Tariff Code (HTS)	8414308030
MSDS Sheet Number	0
Stock Status	S
UPC	00096361582286

Part Interchanges

Fits Vehicles

GMC B6000 (1984)
Chevrolet B60 (1984)
Oldsmobile Cutlass (1985-1987)
Mercedes-Benz 280SL (1968-1971)
Mercedes-Benz 280SEL (1968-1973)
Mercedes-Benz 280S (1968-1971)
Mercedes-Benz 300TD (1979-1985)
Mercedes-Benz 300SD (1978-1985)
Mercedes-Benz 300E (1987)
Mercedes-Benz 300D (1977-1985)
Mercedes-Benz 300CD (1978-1985)
Mercedes-Benz 280SE (1968-1972, 1978-1980)
Mercedes-Benz 280E (1977-1981)
Mercedes-Benz 280CE (1980-1981)
Mercedes-Benz 240D (1977-1983)
Mercedes-Benz 190E (1984)
Pontiac Grand Prix (1986-1987)
Oldsmobile Cutlass Supreme (1985-1988)
Oldsmobile Cutlass Salon (1985-1987)
GMC S15 (1982-1983, 1986)
GMC S15 Jimmy (1986)
GMC P3500 (1991-1993)
GMC Caballero (1986-1987)
Chevrolet S10 (1982-1983, 1986)
Chevrolet S10 Blazer (1986)
Chevrolet P30 (1991-1993)
Chevrolet Monte Carlo (1986-1988)
Chevrolet El Camino (1986-1987)
Chevrolet Citation (1980-1983)
Chevrolet Caprice (1986-1989)
Chevrolet Camaro (1987)
Buick Skylark (1980-1981)
Buick Regal (1986-1987)
