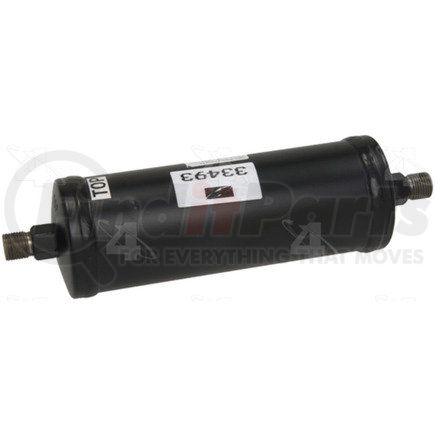

Name: Four Seasons 33493 Steel Filter Drier
SKU: 33493
Price: 22.49 USD
Availability: InStock

FOUR SEASONS part description

Steel Filter Drier

Product Description

Steel Filter Drier

Features & Benefits

As a manufacturer in accumulator/filter driers, we offer quality units produced in a ISO/TS16949 & ISO14001 certified facility. State-of-the-art equipment and high quality materials ensure product integrity for long lasting performance customers rely on.
As a manufacturer in accumulator/filter driers, we offer quality units produced in a ISO/TS16949 & ISO14001 certified facility. State-of-the-art equipment and high quality materials ensure product integrity for long lasting performance.
Our accumulator / filter driers feature quality welds for a durable, leak-free design in addition to high-quality desiccant for appropriate absorption. For easy installation, necessary gaskets, o-rings and seal are included as well.
The accumulator / filter drier acts as a filter by removing moisture and contaminants from the air conditioning system. Such contaminants cannot be removed by flushing, therefore replacing the accumulator / filter drier is essential.
The absorption of moisture in the system is done through the use of a desiccant bag. A leaking or “open” system can cause the bag to become saturated within a few hours making the accumulator/filter drier ineffective.
The absorption of moisture in the system is done through the use of a desiccant bag. A leaking or "open" system can cause the bag to become saturated within a few hours making the accumulator/filter drier ineffective.
Replacement of the accumulator / filter drier is required to validate compressor warranty and must be replaced anytime the system is serviced.

Product Attributes

In Line Filter Material	Desiccant
Inlet Fitting Type	Male Insert O-Ring
Material	Steel
Desiccant	Yes
Mounting Bracket Included	Not Included
797	0.375 in
Moisture Indicator Window	No
Fuse Plug	No
1178	0.625 in
Body Diameter	2.500 IN
Body Length	7.500 IN
Inlet Filter Fitting Type	Male
Desiccant Replaceable	Not Replaceable
In Line Filter Outlet Fitting Type	Male
Type	Washer Not Included
Outlet Fitting Type	Male Insert O-Ring
Bracket?	w/o Bracket
Connector B Type	Male Insert O-Ring
Connector Type	Male Insert O-Ring
Description	Filter Driers
Dia. Mm	63.5 mm
Gasket / Seals?	Included
Inlet Fraction	3/8 in
Inlet In	0.375 in
Inlet Mm	9.525 mm
Length Mm	190 mm
Meets / Exceeds Oem?	Yes
New or Reman	New
O-ring A Number/desc	24606 / Green O-Ring
O-Ring A Quantity	2
Outlet Fraction	3/8 in
Outlet In	0.375 in
Outlet Mm	9.525 mm
Overall Depth In	9.500 in
Overall Depth Mm	241.3 mm
P. R. V.?	No
Service Port?	w/o Service Port
Sight Glass?	No
Stud?	No
Style	Steel Filter Drier
Switch Port?	w/o Switch Port
Des Replaceable?	Not Replaceable
Desiccant Included?	Yes
Dia. In	2.500 in
Filter Material	Desiccant
Fitt Thrd Dia In	0.625 in
Fuse Plug?	No
In Fltr Fitt Typ Gen	Male
Inlet Dia. In	0.375 in
Inlet Type	Male Insert O-Ring
Length In	7.500 in
Material	Steel
Moisture Indicator?	No
Mounting Hardware?	Not Included
Out Fitt Type Gen	Male
Outlet Type	Male Insert O-Ring
Washer Type	Washer Not Included

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8415908045
Harmonized Tariff Code (HTS)	8421290065
MSDS Sheet Number	0
Stock Status	S
UPC	00096361334939

Part Interchanges

FOUR SEASONS 33493 Cross Reference

We have 1 alternatives for the 33493 by FOUR SEASONS:

SUNAIR ARD-1219

Quality, coverage, service—these are the Four Seasons® promise. A brand under the SMP Temperature Control Division, Four Seasons produces and supplies the automotive and truck parts market with a full line of replacement mobile climate control solutions. Four Seasons is one of the industry's largest aftermarket mobile climate control products suppliers and the world's largest compressor remanufacturer. With its unparalleled expertise and continuously expanding global reach, Four Seasons' customers can enjoy top-quality products that are meticulously tested, inspected, and validated before rolling out of the company's assembly plant. Four Seasons is both a manufacturer and a remanufacturer that strives to maintain excellent quality standards, sound reputation, and continuous innovation that keep it ahead of the competition.
