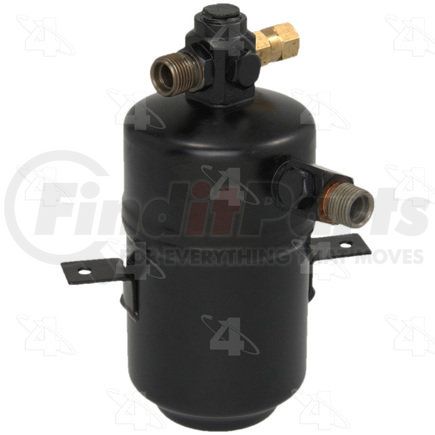

Name: Four Seasons 33389 Steel Filter Drier
SKU: 33389
Price: 25.49 USD
Availability: InStock

FOUR SEASONS part description

STEEL FILTER DRI

Product Description

Steel Filter Drier

Features & Benefits

As a manufacturer in accumulator/filter driers, we offer quality units produced in a ISO/TS16949 & ISO14001 certified facility. State-of-the-art equipment and high quality materials ensure product integrity for long lasting performance customers rely on.
As a manufacturer in accumulator/filter driers, we offer quality units produced in a ISO/TS16949 & ISO14001 certified facility. State-of-the-art equipment and high quality materials ensure product integrity for long lasting performance.
Our accumulator / filter driers feature quality welds for a durable, leak-free design in addition to high-quality desiccant for appropriate absorption. For easy installation, necessary gaskets, o-rings and seal are included as well.
The accumulator / filter drier acts as a filter by removing moisture and contaminants from the air conditioning system. Such contaminants cannot be removed by flushing, therefore replacing the accumulator / filter drier is essential.
The absorption of moisture in the system is done through the use of a desiccant bag. A leaking or “open” system can cause the bag to become saturated within a few hours making the accumulator/filter drier ineffective.
The absorption of moisture in the system is done through the use of a desiccant bag. A leaking or "open" system can cause the bag to become saturated within a few hours making the accumulator/filter drier ineffective.
Replacement of the accumulator / filter drier is required to validate compressor warranty and must be replaced anytime the system is serviced.

Product Attributes

Inlet Fitting Type	Male Insert O-Ring
In Line Filter Outlet Fitting Type	Male
Desiccant Replaceable	Not Replaceable
Mounting Bracket Included	Not Included
Inlet Filter Fitting Type	Male
Outlet Fitting Type	Male Insert O-Ring
Moisture Indicator Window	No
Material	Steel
Body Length	7.000 IN
Desiccant	Yes
Fuse Plug	No
In Line Filter Material	Desiccant
Body Diameter	3.000 IN
Type	Washer Not Included
1178	0.625 in
797	0.375 in
Bracket?	w/ Bracket
Connector B Type	Male Insert O-Ring
Connector Type	Male Insert O-Ring
Description	Filter Driers
Dia. Mm	76.2 mm
Gasket / Seals?	Included
Inlet Fraction	3/8 in
Inlet In	0.375 in
Inlet Mm	9.525 mm
Length Mm	177.8 mm
Meets / Exceeds Oem?	Yes
New or Reman	New
O-ring A Number/desc	[24606] / Green O-Ring
O-Ring A Quantity	3
Outlet Fraction	3/8 in
Outlet In	0.375 in
Outlet Mm	9.525 mm
Overall Depth In	7.000 in
P. R. V.?	Yes
Service Port?	w/ Service Port
Sight Glass?	Yes
Stud?	No
Style	Steel Filter Drier
Switch Port Dia. In	0.250 in
Switch Port Dia.mm	6.350 mm
Switch Port?	w/ Switch Port
Des Replaceable?	Not Replaceable
Desiccant Included?	Yes
Dia. In	3.000 in
Filter Material	Desiccant
Fitt Thrd Dia In	0.625 in
Fuse Plug?	No
In Fltr Fitt Typ Gen	Male
Inlet Dia. In	0.375 in
Inlet Type	Male Insert O-Ring
Length In	7.000 in
Material	Steel
Moisture Indicator?	No
Mounting Hardware?	Not Included
Out Fitt Type Gen	Male
Outlet Type	Male Insert O-Ring
Washer Type	Washer Not Included

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8415908045
Harmonized Tariff Code (HTS)	8421290065
MSDS Sheet Number	0
Stock Status	S
UPC	00096361333895

Part Interchanges

Fits Vehicles

Mercedes-Benz SL600 (1994-1997)
Mercedes-Benz SL500 (1994-1995)
Mercedes-Benz SL320 (1994-1997)
Mercedes-Benz 600SL (1993)
Mercedes-Benz 500SL (1990-1993)
Mercedes-Benz 300SL (1990-1993)
