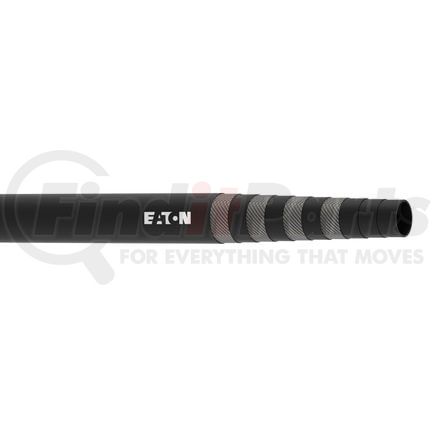

Name: Weatherhead H43008-100 Eaton Weatherhead H430 Series Rubber Hydraulic Spiral Hose
SKU: h43008100
Price: 1699.0 USD
Availability: InStock

WEATHERHEAD part description

Abrasion Resistance	Standard
Application	Hydraulic system service with petroleum and water based fluids, for general industrial use.
Bend Radius Min	3.54 inch
Burst Pressure	24000 psi
Color	Black
Construction	4 Spiral
Cover Material	Synthetic Rubber
Dash Size	-8
Factory Crimp	Yes
Impulse Cycle Life	500000 cycle
InsIDe Diameter	0.5 inch
Lay Line Style	Embossed
OutsIDe Diameter	0.96 inch
Qualified Hose Fittings	430 U, 4S, TTC12
Reinforcement Material	Wire
Tube Material	Synthetic Rubber
Tube Wall Thickness	0.21 inch
Working Pressure	6000 psi
Working Temperature Max	260 degree Fahrenheit
Working Temperature Min	-40 degree Fahrenheit

Features & Benefits

Maximum durability under harsh operating conditions
Robust construction able to withstand highest pressures
System engineered to extend hose assembly life

Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
