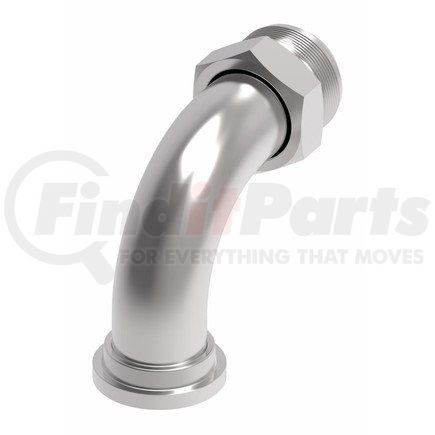

Weatherhead FF5540-2016S - Aeroquip Adapter - Adaptor FH x MJB (R11)
- Part Number
- FF5540-2016S
- Manufacturer
- WEATHERHEAD
- Description
-
Aeroquip Adapter - Adaptor FH x MJB (R11)
details
$8299
14 day lead time
WEATHERHEAD part description
37 Male Flare Dash Size | 16 |
A in | 3.41 |
B in | 2.38 |
Dash Size | 2016 |
Description | Split Flange/ 37 Flare SAE High Pressure Series (Code 62) |
Family | Adapter |
Flange/ Split Flange Size | 37987 |
Material | Steel |
Plating | Zinc Plated |
Shape | 90 |
Split Flange (Code 62) Dash Size | 20 |
Thread T | 1 5/16-12 |
Tube Outside Diameter inch | 1 |
Features & Benefits
- Mates with FC3425- size- 449 flanges. The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514.
Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
