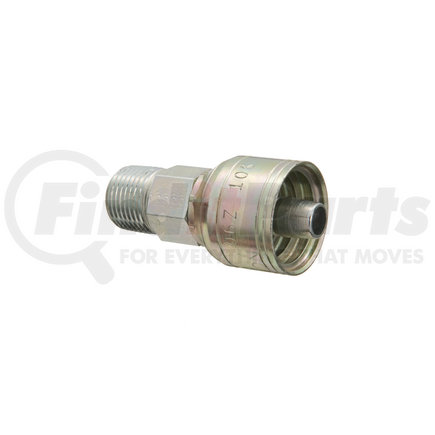

Name: Weatherhead 12Z-108 Eaton Weatherhead Z Series Crimp Hose Fittings Male Pipe Rigid
SKU: 12z108
Price: 23.49 USD
Availability: InStock

WEATHERHEAD part description

Angle Shape	Straight
Application	General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
Compatible Hose ID	0.75 inch
Compatible Hoses	H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, EC118
Compatible Tube OD	0.5 inch
Construction Style	Crimp
End Size 1	1/2 IN
End Gender 1	Male
End Type 1	MPT
End Type 2	Line/Hose/Tube
Finish Plating	Dura-Kote
Hex Size 1	1.125 inch
Hose Cut Off Factor	1.6 inch
Hose Dash Size	-12
InsIDe Diameter	0.56 inch
Item Type	Fitting Assembly
OutsIDe Diameter	1.563 inch
PrODuct Material	Carbon steel
Thread Size 1	1/2-14
Thread Sealant	Yes

Features & Benefits

Dura-Kote plating for superior corrosion resistance
Innovative design to deliver performance and maximum uptime
System engineered to extend hose assembly life

Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
