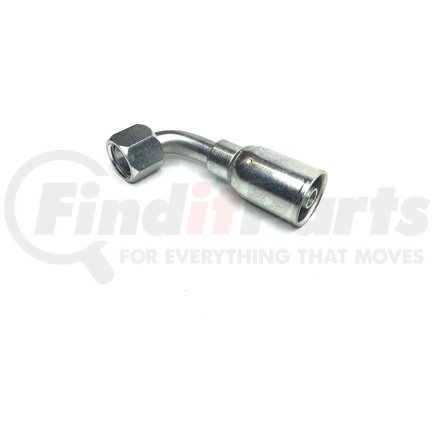

Weatherhead 06906E-666 - Eaton Weatherhead 069 E Series Crimp Hose Fittings JIC 37 Female Swivel 90 Tube Elbow
- Part Number
- 06906E-666
- Manufacturer
- WEATHERHEAD
- Description
-
Eaton Weatherhead 069 E Series Crimp Hose Fittings JIC 37 Female Swivel 90 Tube Elbow
details
$2649
MSRP: $69.47
Save: $42.98
Limited Availability
WEATHERHEAD part description
Angle Shape | 90 Degree |
Application | General purpose low and medium pressure hydraulics. Generally used for truck and off-road vehicle applications. |
Compatible Hose ID | 0.375 inch |
Compatible Hoses | H059 , H069, H166, H169, H229, H239, H366, H569 |
Compatible Tube OD | 0.3125 inch |
Construction Style | Crimp |
Drop Dimension | 0.85 |
End Size 1 | 9/16 IN |
End Gender 1 | Female |
End Gender 2 | Female |
End Type 1 | JIC 37 |
End Type 2 | Line/Hose/Tube |
Finish Plating | Zinc Clear Trivalent Chromate |
Hex Size 1 | 0.6875 inch |
Hose Cut Off Factor | 1.64 inch |
Hose Dash Size | -6 |
InsIDe Diameter | 0.24 inch |
Item Type | Fitting Assembly |
OutsIDe Diameter | 0.82 inch |
PrODuct Material | Carbon steel |
Thread Size 1 | 9/16-18 |
Thread Sealant | No |
Working Pressure | 4000 psi |
Features & Benefits
- Dura-Kote plating for superior corrosion resistance
- Innovative design to deliver performance and maximum uptime
- System engineered to extend hose assembly life
WEATHERHEAD 06906E-666 Cross Reference
We have 1 alternatives for the 06906E-666 by WEATHERHEAD:
Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
