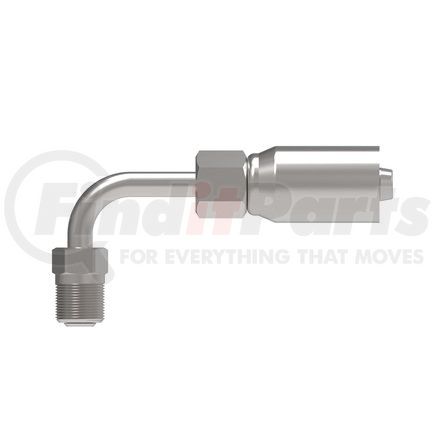

Name: Weatherhead 06905E-E05 Eaton Weatherhead 069 E Series Crimp Hose Fittings Inverted Male Swivel 90 Tube Elbow
SKU: 06905ee05
Price: 25.99 USD
Availability: InStock

WEATHERHEAD part description

Angle Shape	90 Degree
Application	General purpose low and medium pressure hydraulics. Generally used for truck and off-road vehicle applications.
Compatible Hose ID	0.3125 inch
Compatible Hoses	H059 , H069, H166, H169, H229, H239, H366, H569
Compatible Tube OD	0.25 inch
Construction Style	Crimp
Drop Dimension	1.61
End Size 1	1/2 IN
End Size 2	1/4 IN
End Gender 1	Male
End Gender 2	Female
End Type 1	UN
End Type 2	Line/Hose/Tube
Finish Plating	Zinc Clear Trivalent Chromate
Hex Size 1	0.5 inch
Hex Size 2	0.4375 inch
Hose Cut Off Factor	1.59 inch
Hose Dash Size	-5
InsIDe Diameter	0.18 inch
Item Type	Fitting Assembly
OutsIDe Diameter	0.73 inch
PrODuct Material	Carbon steel
Thread Size 1	1/2-14
Thread Sealant	No

Features & Benefits

Dura-Kote plating for superior corrosion resistance
Innovative design to deliver performance and maximum uptime
System engineered to extend hose assembly life

Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
