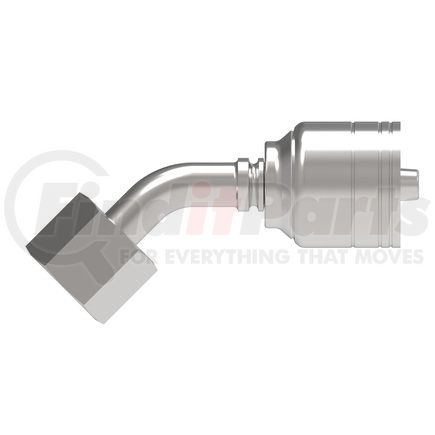

Name: Weatherhead 04Z-08D Eaton Weatherhead Z Series Crimp Hose Fittings Female Swivel DIN 24 Seat 45 Light
SKU: 04z08d
Price: 36.99 USD
Availability: InStock

WEATHERHEAD part description

Angle Shape	45 Degree
Application	General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
Compatible Hose ID	0.25 inch
Compatible Hoses	H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, EC118
Construction Style	Crimp
Drop Dimension	0.69
End Size 1	0.32 IN
End Gender 1	Female
End Gender 2	Female
End Type 1	Metric
End Type 2	Line/Hose/Tube
Finish Plating	Dura-Kote
Hex Size 1	0.67 inch
Hose Cut Off Factor	1.54 inch
Hose Dash Size	-4
InsIDe Diameter	0.17 inch
Item Type	Fitting Assembly
OutsIDe Diameter	0.882 inch
PrODuct Material	Carbon steel
Thread Size 1	M14X1.5
Thread Sealant	No

Features & Benefits

Dura-Kote plating for superior corrosion resistance
Innovative design to deliver performance and maximum uptime
System engineered to extend hose assembly life
Over 550 Z-Series part numbers available
Eaton’s WeatherMATCH program provides identification markings on the hose, hose fittings, and crimp dies for quick and easy assembly
Eaton’s best selling one-piece bite the wire style hose fitting that is qualified with virtually all Weatherhead one and two braided hydraulic hoses.

Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
