AUTOLITE part description

Product Description

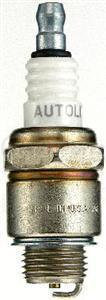

Autolite 46 Copper Resistor Spark Plug

Features & Benefits

  • One-Piece terminal stud provides a reliable high voltage electrical connection
  • The copper core center electrode aids in thermal control and improves resistance to fouling.
  • High alumina multi-rib insulator helps prevent flash-over which can lead to misfires
  • Its specially engineered high nickel alloy center and ground electrode provides extended life.
  • Heat-fused glass composite resistor center seal provides high performance EMI noise suppression and a 100 percent leak-proof seal
  • The high alumina multi-rib ceramic insulator provides thermal conductivity and superior insulation for increased strength.
  • Solid copper core center electrode provides optimal thermal and electrical conductivity for better performance in all driving conditions
  • Designed with a nickel-plated shell that is corrosion resistant to provide increased durability for extended periods.
  • High nickel alloy side electrode resists electrical and chemical wear providing excellent durability
  • 2 year limited warranty

Product Attributes

Resistance 4000 82
Ground Electrode Tip Design Standard
Ground Electrode Core Material Nickel
Electrical Terminal Type Non-Removable Nut
Center Electrode Core Material Copper
Center Electrode Tip Material Nickel
Pre-Gap Size 0.044 IN
Ground Electrode Quantity 1
Hex Size 21 MM
Seat Type Tapered
Reach 11.1252 MM
Thread Diameter 18 MM
Insulator Material Ceramic
Resistor Type Yes
Ground Electrode Tip Material Nickel
9608 Standard
9805 Long Projection
Washer Included No
Grade Type Regular
Hex Size 13/16 IN
Manufacturer Heat Range 7
Reach 0.438 IN
9459 No
9507 Hex
9746 No
Pre-Gap Size 1.1176 MM

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8511100000
Warranty Time 2
Warranty Time UOM YR
Harmonized Tariff Code (HTS) 8511100000
UPC 00009100000460
UNSPSC 26101732

Part Interchanges

Fits Vehicles

  • Ford F-350 (1955-1965)
  • Ford F-250 (1955-1965)
  • Ford F-100 (1955-1965)
  • Ford Econoline (1961-1967)
  • Ford 300 (1963)
  • Ford Custom (1957, 1964-1966)
  • Lincoln Custom (1955)
  • Mercury Custom (1955-1956)
  • Edsel Villager (1959-1960)
  • Edsel Ranger (1959-1960)
  • Ford Station Bus (1962-1965)
  • Ford Galaxie 500 (1962-1966)
  • Ford Custom 500 (1965-1966)
  • Mercury Villager (1962-1967)
  • Mercury Turnpike Cruiser (1957)
  • Mercury Voyager (1957-1959, 1966-1967)
  • Mercury Park Lane (1958-1960)
  • Mercury Monterey (1955-1962)
  • Mercury Montego (1968-1974)
  • Mercury Montclair (1955-1960)
  • Mercury Meteor (1961-1963)
  • Mercury Medalist (1956-1958)
  • Mercury Cyclone (1964)
  • Mercury Country Cruiser (1959-1960, 1963)
  • Mercury Commuter (1957-1962)
  • Mercury Colony Park (1957-1962)
  • Mercury Caliente (1964-1967)
  • Lincoln Premier (1956-1957)
  • Lincoln Mark II (1956-1957)
  • Lincoln Capri (1955-1957)
  • Ford Victoria (1955-1960)
  • Ford Torino (1968-1974)
  • Ford Sunliner (1955-1960)
  • Ford Starliner (1960)
  • Ford Sprint (1963-1964)
  • Ford Skyliner (1955-1959)
  • Ford Ranchero (1957-1968, 1970-1974)
  • Ford Ranch Wagon (1955-1974)
  • Ford Park Lane Wagon (1956)
  • Ford P-350 (1955-1967, 1970)
  • Ford P-100 (1957-1970)
  • Ford Mainline (1955-1956)
  • Ford Gran Torino (1972-1974)
  • Ford Galaxie (1959-1966)
  • Ford Falcon Sedan Delivery (1961-1965)
  • Ford Falcon (1960-1970)
  • Ford Fairlane (1955-1970)
  • Ford E-300 Econoline (1969-1970)
  • Ford E-200 Econoline (1969-1971)
  • Ford E-100 Econoline (1969-1971)
  • Ford Del Rio Wagon (1957-1958)
  • Ford Customline (1955-1956)
  • Ford Custom 300 (1957-1960)
  • Ford Courier Sedan Delivery (1952-1960)
  • Ford Country Squire (1955-1974)
  • Ford Country Sedan (1955-1974)
  • Ford Club Wagon (1962-1967)
  • Ford Club (1955-1959)
  • Ford Bronco (1966-1974)
  • Mercury Zephyr (1978-1983)
  • Mercury Monarch (1975-1980)
  • Mercury Marquis (1983)
  • Mercury Cougar (1980-1982)
  • Mercury Comet (1960-1969, 1971-1977)
  • Mercury Capri (1966-1967, 1979-1982)
  • Ford Thunderbird (1955-1959, 1980-1982)
  • Ford Mustang (1964-1973, 1979-1982)
  • Ford Maverick (1970-1977)
  • Ford LTD (1965-1966, 1983)
  • Ford Granada (1975-1982)
  • Ford Fairmont (1978-1983)
