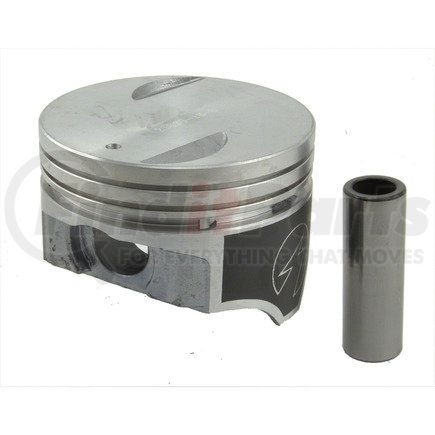

Sealed Power H676P - Sealed Power H676P Engine Piston Set
- Part Number
- H676P
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power H676P Engine Piston Set
details
$13196
Package Price for 4 Units
@ $32.99 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Hypereutectic
- Made of high strength alloy & silicon
- Higher strength than cast
- Designed to retain standard ring gaps in top groove
- Utilizes ISO & QS certified manufacturing
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 1.50 MM |
| Second Compression Ring Thickness | 1.50 MM |
| Oil Ring Thickness | 3.00 MM |
| Piston Pin Outside Diameter | 0.9122 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 3.7795 IN |
| Piston Material | Hypereutectic |
| 9607 | 1.335 IN |
| Head Illustration | 5 |
| Head Type | Flat Head w/2 valve reliefs |
| Minimum Clearance | 0.0015 @ 1.990 from top of head |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Weight W Pin Gram | 00518.+/- 00. |
| Bore Diameter | 96.0 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 23.17 MM |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046229501 |
Part Interchanges
Fits Vehicles
- Ford Ranger (1995-1997)
