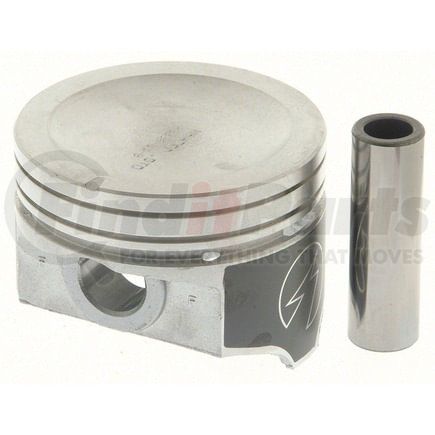

Sealed Power 368P - Sealed Power 368P Engine Piston Set
- Part Number
- 368P
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power 368P Engine Piston Set
details
$61592
Package Price for 8 Units
@ $76.99 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9997 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.1875 IN |
| Piston Material | Cast Aluminum |
| 9607 | 1.947 IN |
| Head Illustration | 28 |
| Head Type | Recessed Head .090 deep x 3.500 dia. - 9.9:1 C.R. |
| Minimum Clearance | 0.0015 @ bottom of skirt |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Bore Diameter | 106.4 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 25.392 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00724956347636 |
Part Interchanges
- Badger P523
- Badger P523-STD
- General Motors 1367298
- General Motors 1394210
- General Motors 1395521
- General Motors 1395653
- Clevite 9-1728
- Clevite TC1735
- Silvolite 1728
- Ertel 944P
- Mcquay-Norris P2011AX
- Dana Commercial Vehicle Service Parts 224-1735
- Dana Commercial Vehicle Service Parts 1735P
- Dana Commercial Vehicle Service Parts TC1735
- Badger P523STD
- Clevite 91728
- Sealed Power 2290P
- Dana Commercial Vehicle Service Parts 2241735
Fits Vehicles
- Buick Wildcat (1967-1969)
- Buick Riviera (1967-1969)
- Buick Electra (1967-1969)
