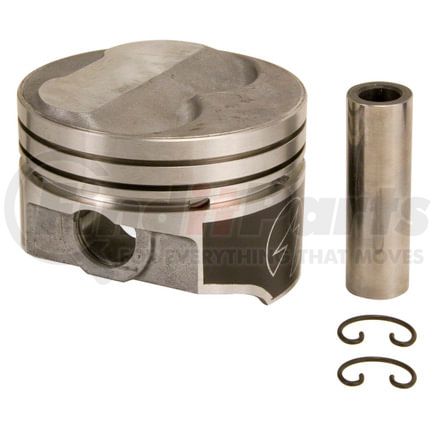

Name: Sealed Power H618CP 60 "Speed Pro" Engine Piston Cast Set
SKU: h618cp60
Price: 98.36 USD
Availability: OutOfStock

SEALED POWER part description

Product Description

Engine Piston Set

Application Summary

Performance Engine Performance Performance; 1980-1985 Chevrolet K5 Blazer; 1980-1985 Chevrolet C10; 1980-1985 Chevrolet C10 Suburban; 1980-1985 Chevrolet C20; 1980-1985 Chevrolet C20 Suburban; 1980-1985 Chevrolet C30; 1981 Chevrolet Camaro; 1985 Chevrolet Caprice; 1981-1985 Chevrolet Corvette; 1980-1985 Chevrolet G10; 1980-1985 Chevrolet G20; 1980-1985 Chevrolet G30; 1981-1985 Chevrolet Impala; 1980-1985 Chevrolet K10; 1980-1985 Chevrolet K10 Suburban; 1980-1985 Chevrolet K20; 1980-1985 Chevrolet K20 Suburban; 1980-1985 Chevrolet K30; 1981 Chevrolet Malibu; 1980-1985 Chevrolet P20; 1980-1985 Chevrolet P30; 1980-1985 GMC C1500; 1980-1985 GMC C1500 Suburban; 1980-1985 GMC C2500; 1980-1985 GMC C2500 Suburban; 1980-1985 GMC C3500; 1980-1985 GMC K1500; 1980-1985 GMC K1500 Suburban; 1980-1985 GMC K2500; 1980-1985 GMC K2500 Suburban; 1980-1985 GMC K3500; 1980-1985 GMC G1500; 1980-1985 GMC G2500; 1980-1985 GMC G3500; 1980-1985 GMC Jimmy; 1980-1985 GMC P2500; 1980-1985 GMC P3500

Features & Benefits

Exclusive higher-strength FM-425 alloy with 16.5 percent silicon finely dispersed throughout the material
Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
Piston skirts protected by next-gen DUROSHIELD(R) coating.
TACTM ring groove geometry
Weight matched to +/- 2 grams.
Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications

Product Attributes

Oversized	Yes
Top Compression Ring Thickness	0.0781 IN
Second Compression Ring Thickness	0.0781 IN
Oil Ring Thickness	0.1875 IN
Assembly Lubricant Included	No
Bore Diameter	4.060 IN
Piston Material	Hypereutectic
9607	1.560 IN
Dome Volume CC	3.5
Head Illustration	135
Head Type	.125 dome, 2 reliefs; DUROSHIELD skirt coated piston
Lock Ring	Included
Minimum Clearance	.0010
Oversize Inch	.060
Part Description	Engine Piston
Pin Diameter (Inch)	0.927
Pin Type	F
Pin Weight Gram	159
Weight W Pin Gram	770
Weight w/o Pin Gram	611

Additional Information

Country of Origin (Primary)	IN
Canadian Harmonizing Tariff Code	8409910010
Harmonized Tariff Code (HTS)	8409915085
UPC	00614046228504

Speed-Pro® is the go-to brand not only for racers and performance enthusiasts but also for those who are cruising down the road day in day out. With its engineering expertise, advanced technologies, and industry-leading manufacturing facilities and techniques, Speed-Pro sets the bar higher for other manufacturers of pistons, engine bearing parts, and performance engine components. The engine solutions from Speed-Pro are meticulously designed and crafted to boost horsepower production and make engine rebuild an easy feat. Since its establishment, this brand has continuously improved and refined its operations and quality control measures to maintain high quality standards and satisfy customers’ requirements and demands.

Fits Vehicles

GMC P3500 (1980-1985)
GMC P2500 (1980-1985)
GMC K3500 (1980-1985)
GMC K2500 Suburban (1980-1985)
GMC K2500 (1980-1985)
GMC K1500 Suburban (1980-1985)
GMC K1500 (1980-1985)
GMC Jimmy (1980-1985)
GMC G3500 (1980-1985)
GMC G2500 (1980-1985)
GMC G1500 (1980-1985)
GMC C3500 (1980-1985)
GMC C2500 Suburban (1980-1985)
GMC C2500 (1980-1985)
GMC C1500 Suburban (1980-1985)
GMC C1500 (1980-1985)
Chevrolet P30 (1980-1985)
Chevrolet P20 (1980-1985)
Chevrolet Malibu (1981)
Chevrolet K30 (1980-1985)
Chevrolet K20 Suburban (1980-1985)
Chevrolet K20 (1980-1985)
Chevrolet K10 Suburban (1980-1985)
Chevrolet K10 (1980-1985)
Chevrolet Impala (1981-1985)
Chevrolet G30 (1980-1985)
Chevrolet G20 (1980-1985)
Chevrolet G10 (1980-1985)
Chevrolet Caprice (1985)
Chevrolet Corvette (1981-1982, 1984-1985)
Chevrolet Camaro (1981)
Chevrolet C30 (1980-1985)
Chevrolet C20 Suburban (1980-1985)
Chevrolet C20 (1980-1985)
Chevrolet C10 Suburban (1980-1985)
Chevrolet C10 (1980, 1982-1985)
Chevrolet K5 Blazer (1980-1985)
