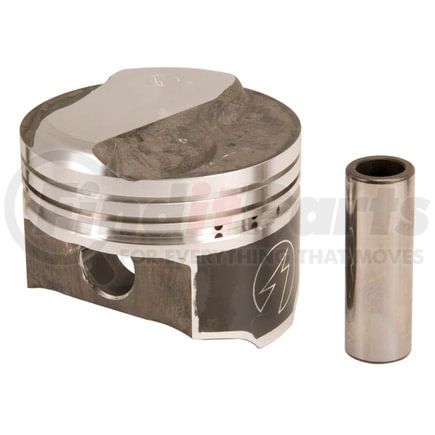

Sealed Power L-2465F 60 - "Speed Pro" POWERFORGED Engine Piston
- Part Number
- L-2465F 60
- Manufacturer
- SEALED POWER
- Description
-
"Speed Pro" POWERFORGED Engine Piston
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
SEALED POWER part description
Product Description
Engine Piston
Application Summary
Performance
Features & Benefits
- Forged under 3,000 tons of force.
- Fully updated skirt profiles
- Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
- SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
- The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Product Attributes
| Oversized | Yes |
| Oversized Amount | .060 IN |
| Grade Type | Performance |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Assembly Lubricant Included | No |
| Cylinder Bore Diameter | 4.311 IN |
| Piston Material | POWERFORGED(R) |
| 9607 | 1.640 IN |
| Dome Volume CC | 24.3 |
| Head Illustration | 139 |
| Head Type | .270 dome; DUROSHIELD skirt coated piston; 30 O/S has .226 dome; 60 O/S has .215 dome |
| Lock Ring | N/R |
| Minimum Clearance | .0040 |
| Part Description | Engine Piston |
| Pin Diameter (Inch) | 0.990 |
| Pin Type | P |
| Pin Weight Gram | 154 |
| Weight W Pin Gram | 820 |
| Weight w/o Pin Gram | 666 |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00087674138390 |
Part Interchanges
Speed-Pro® is the go-to brand not only for racers and performance enthusiasts but also for those who are cruising down the road day in day out. With its engineering expertise, advanced technologies, and industry-leading manufacturing facilities and techniques, Speed-Pro sets the bar higher for other manufacturers of pistons, engine bearing parts, and performance engine components. The engine solutions from Speed-Pro are meticulously designed and crafted to boost horsepower production and make engine rebuild an easy feat. Since its establishment, this brand has continuously improved and refined its operations and quality control measures to maintain high quality standards and satisfy customers’ requirements and demands.
