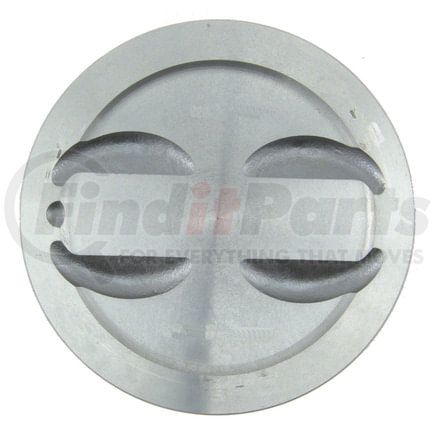

Sealed Power 362NP20 - Sealed Power 362NP 20 Engine Piston Set
- Part Number
- 362NP20
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power 362NP 20 Engine Piston Set
details
$39192
Package Price for 8 Units
@ $48.99 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.931 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.0800 IN |
| Piston Material | Cast Aluminum |
| 9607 | 1.581 IN |
| Head Illustration | 29 |
| Head Type | Recessed Head .190 deep x 3.640 dia. w/4 valve reliefs - 9.0:1 C.R. |
| Minimum Clearance | 0.001 @ 2.440 from top of head |
| Oversized Amount | 0.020 IN |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Pin Type | P |
| Weight W Pin Gram | 00765.+/- 00. |
| Bore Diameter | 103.6 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 23.647 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046342101 |
Part Interchanges
- American Motors 4487548
- 362NP 20
- Badger P891-020
- Clevite 9-2225.020
- Clevite TC2234.020
- 2225.020
- Ertel 1015P20
- Z9398 020
- Dana Commercial Vehicle Service Parts TC2234.020
- Badger P891020
- Silvolite 2225020
- Clevite 92225020
- Clevite TC2234020
- Zollner Z9398020
- Dana Commercial Vehicle Service Parts TC2234020
Fits Vehicles
- American Motors Hornet (1971-1974)
- American Motors AMX (1970)
- American Motors Ambassador (1970-1974)
- American Motors Matador (1971-1978)
- American Motors Rebel (1970)
- American Motors Javelin (1970-1974)
- Jeep J-4800 (1971-1973)
- Jeep J-4700 (1971-1973)
- Jeep J-4600 (1971-1973)
- Jeep J-4500 (1971-1973)
- Jeep J-3800 (1971)
- Jeep J-2600 (1971-1973)
- Jeep J-2500 (1971-1973)
- Jeep J-100 (1971-1973)
- Jeep Wagoneer (1972-1983)
- Jeep J20 (1974-1988)
- Jeep J10 (1974-1988)
- Jeep Grand Wagoneer (1984-1991)
- Jeep Cherokee (1974-1983)
